AL173216 Front Axle

AL173216 MFWD Axle with 15.692 Ratio

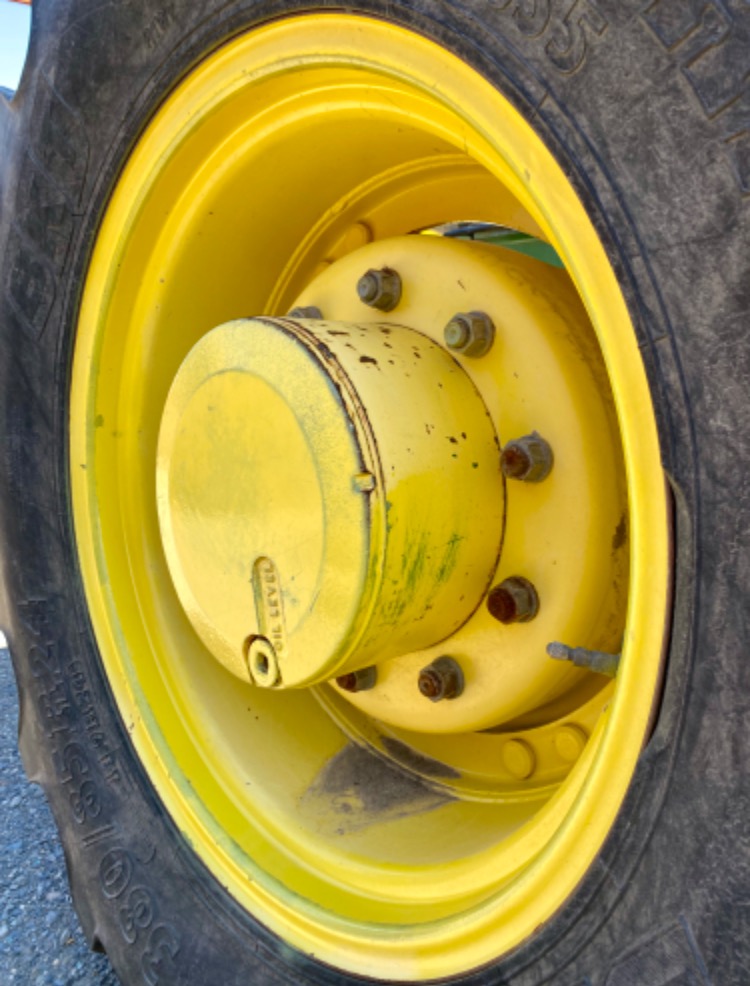

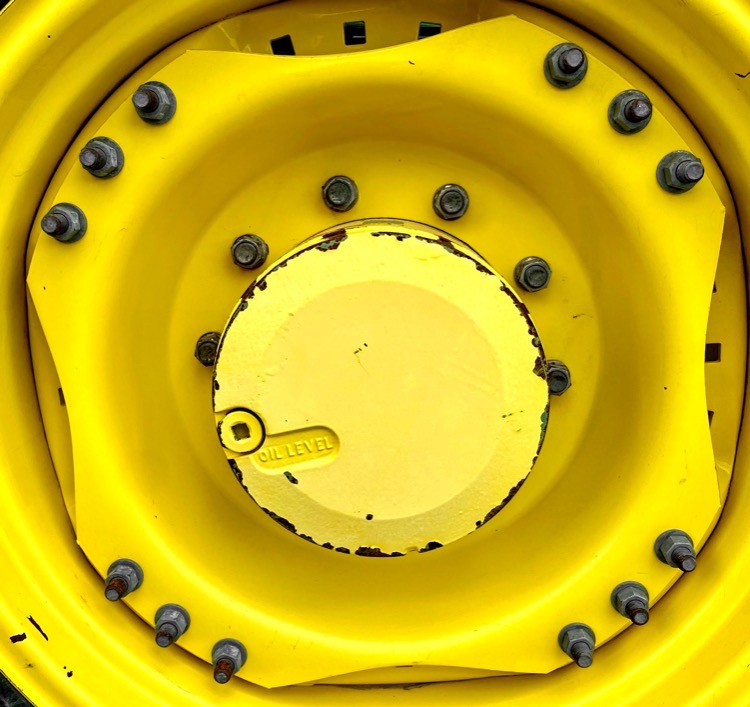

• 10 Bolt Wheels
• Clockwise Forward Rotation
• Replaces AL158127, AL171555, AL174884

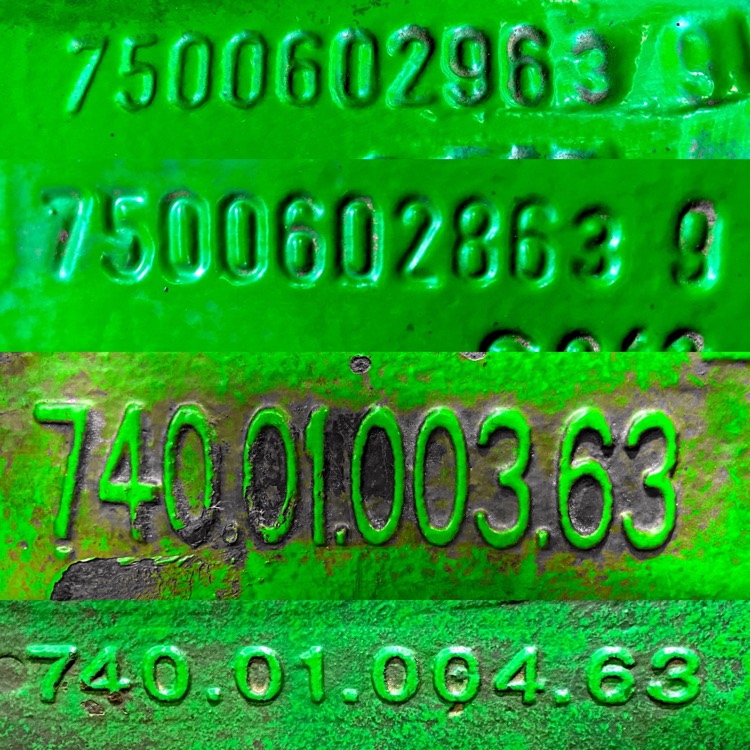

• AL175040 RH Long Housing 740.01.003.63
• AL175041, AL175265 LH Short Housing 740.01.004.63
• LH Steering Knuckle 75006029639
• RH Steering Knuckle 75006028639
• Will work for MFWD Axle with AutoTrac if AutoTrac is not used.
  • AL173217 AL175358, AL162869, AL171556

Fitment:

• 2006 - Later Models
• 6615, 6715, 7130, 7130 Premium, 7220, 7320, 7230, 7230 Premium,
• Can be converted to AL173218, AL173215 with AL174435
• Should replace AL151676, AL151677

Tune-Up Parts

• Pivot Bushings L76471 - $35 each
• Pinion Seal AL159591 - $35
• Pinion O-Ring L156850 - $5
• Tie-Rod Assembly AL160539, AL209328 - $550 each
  • Outer Tie Rod End AL160542, AL209601
  • Inner Ball Joint AL160543, AL209420
  • Outer Boot AL160857, AL209609
  • Inner Boot AL160533, AL209610

Reseal Parts

• Final Drive Seals AL159594
• Axle Shaft Seals AL160535
• Steering Cylinder Seal Kit AL160541

Axle BOM

• Yoke AL160117 - $615
• AL175040 RH Long Housing 740.01.003.63 - $3,750
• AL175041, AL175265 LH Short Housing 740.01.004.63 - $6,575
• Ring and Pinion (15.692) AL174435 - $1,750
• Ring and Pinion (17.50) AL174538
• Differential Case AL161278 - $1,300
• Differential Gears AL174044 - $1,050
• Diff Lock Clutches AL160176 - $680
• Steering Cylinder AL160538 (Ram AL160540) - $3,250

Final Drive BOM

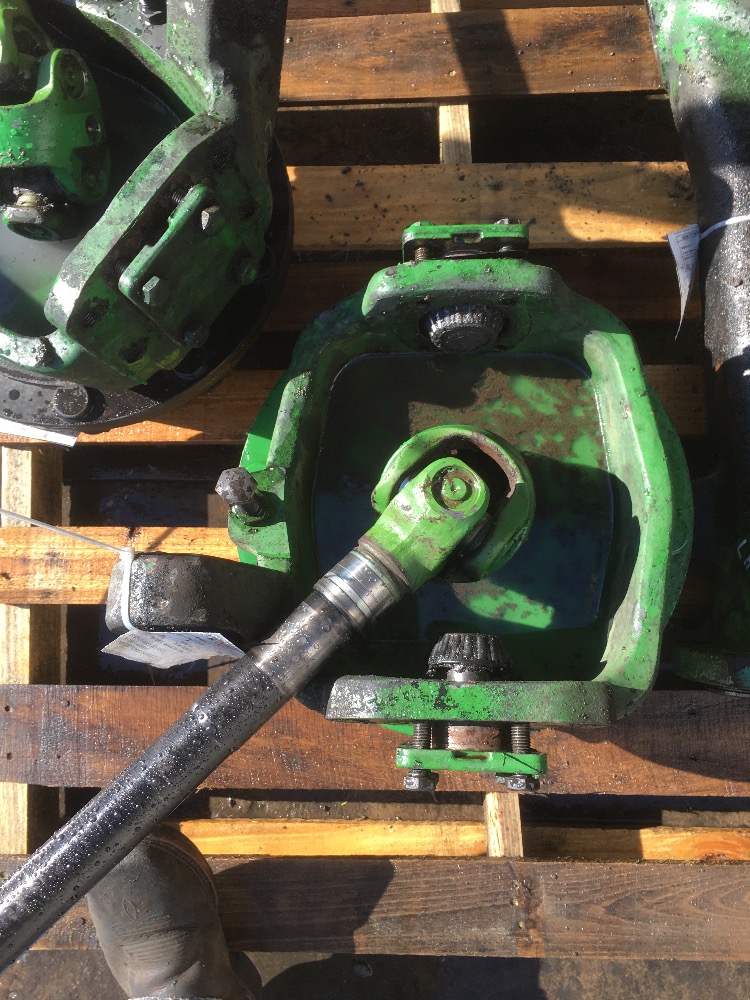

• Steering Knuckle, LH L171448
• Steering Knuckle, RH L171449
