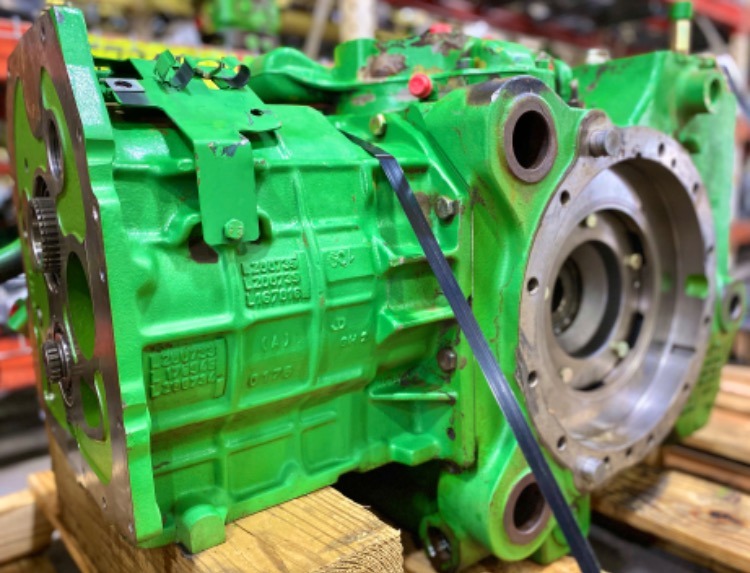

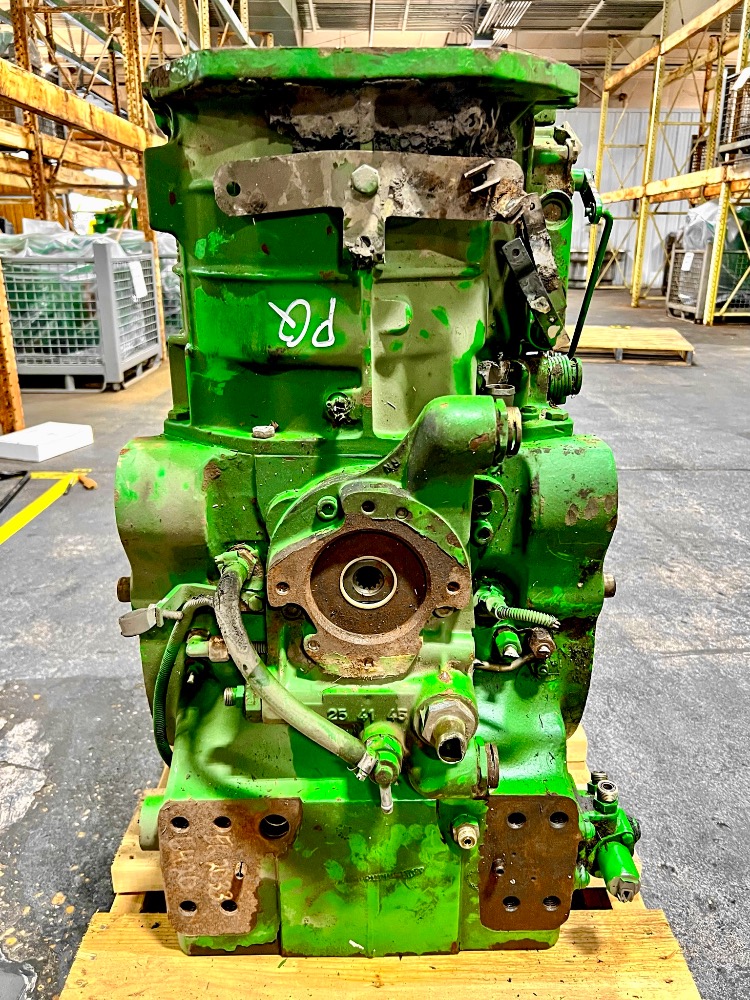

John Deere PowrQuad Transmission and Differential
6120, 6220, 6320, 6420
TEG20-0951 without Creeper and with PFC Hydraulic System

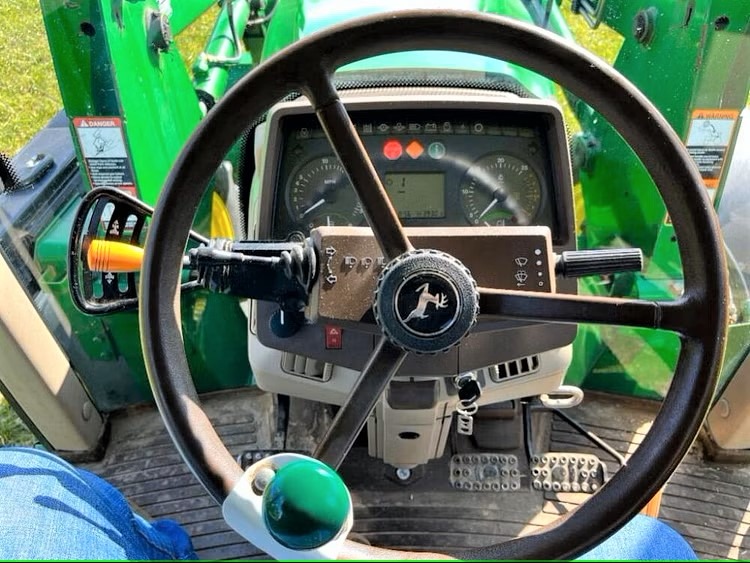

- TE = Manually Operated Left Hand Reverser
- G = 16 Speed with 4 Range A-B-C-D
- 20 = 6020 Series Tractors

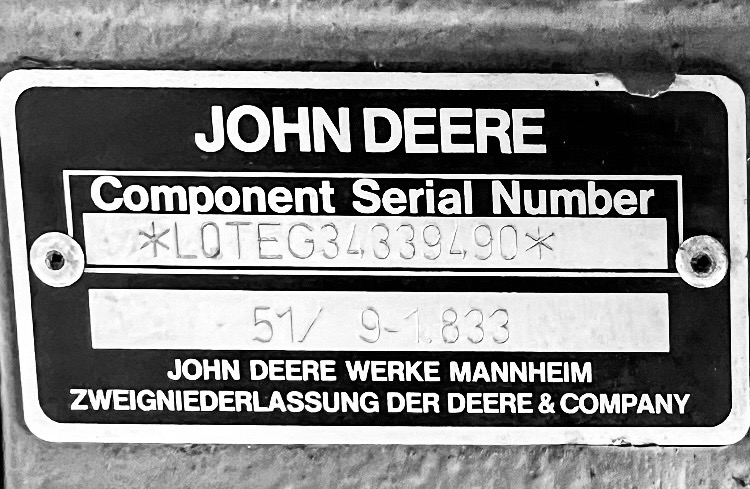

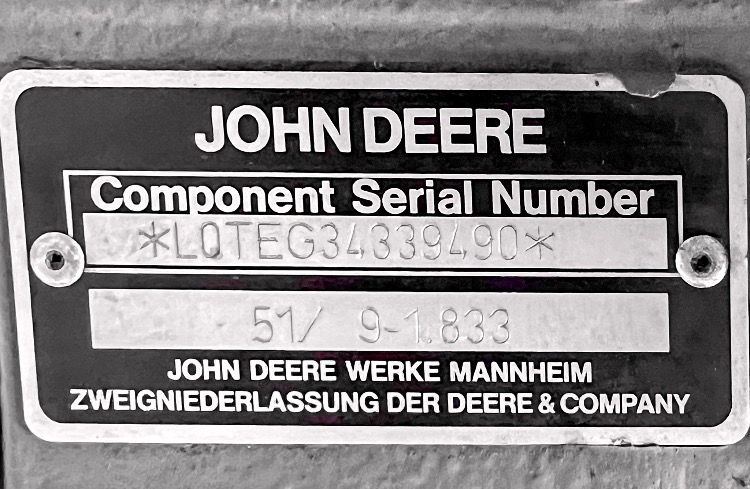

- 0951 = 9/51 Ring and Pinion Differential Case
NOTE:

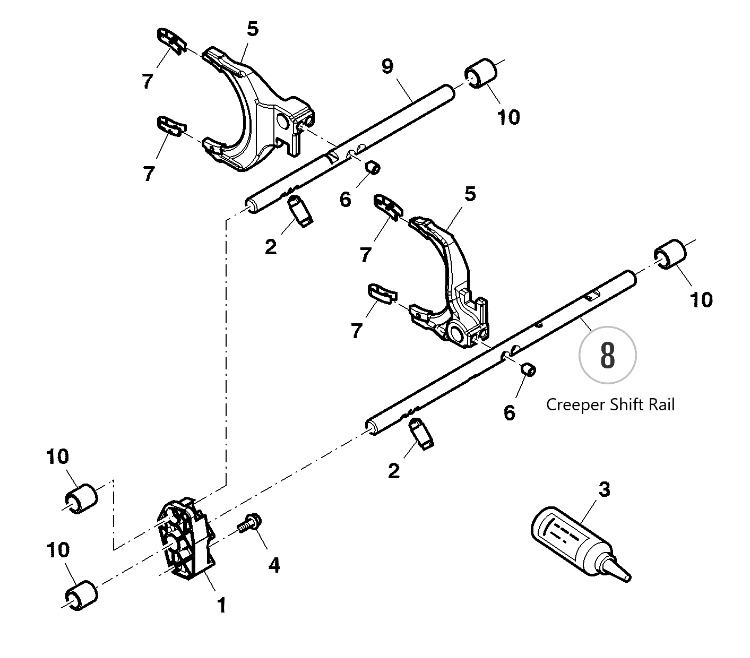

Tractors without Creeper use Shift Rail L76225 or L156693
Tractors with Creeper use Shift Rail L77226 or L156694
Creeper Module Options AL157054, AL157055, AL162171, AL162433, AL162435
NOTE: Suction Hose Adapter into Differential Case May Be Required. See Part Number L156224
Includes:

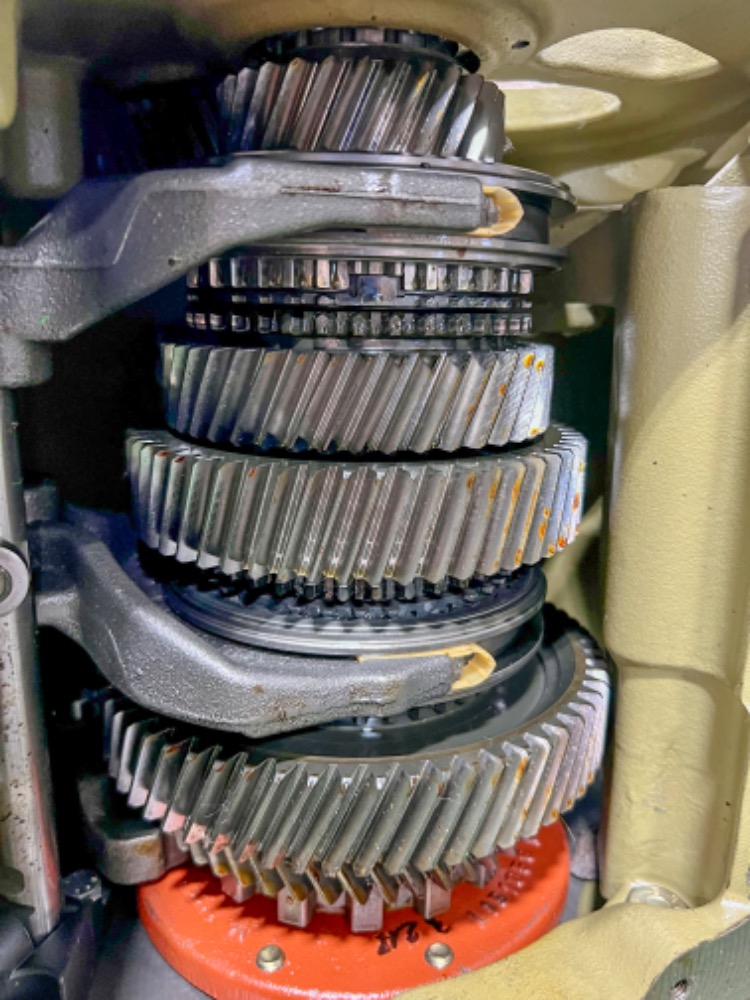

- Range Housing: AL159912, AL222741 or AL227645
- Range Housing (Marked L154950, L156263, L166553)
- Synchronizer AL157733 (2)
- A Range Gear Z = 63 L155888 (Marked L155888) (Sub for L116450)
- B Range Gear Z = 55 L155889 (Marked L155889) (Sub for L116451)
- C Range Gear Z = 43 L155891 (Marked L155891) (Sub for L115864)
- D Range Gear Z = 29 L155890 (Marked L155890) (Sub for L151484)
- Gear L155496
- Pinion Z = 50/16 L168800 (Sub for L154534)
- Driveshaft L202752 (Sub for L115863) (Sub to L224417)

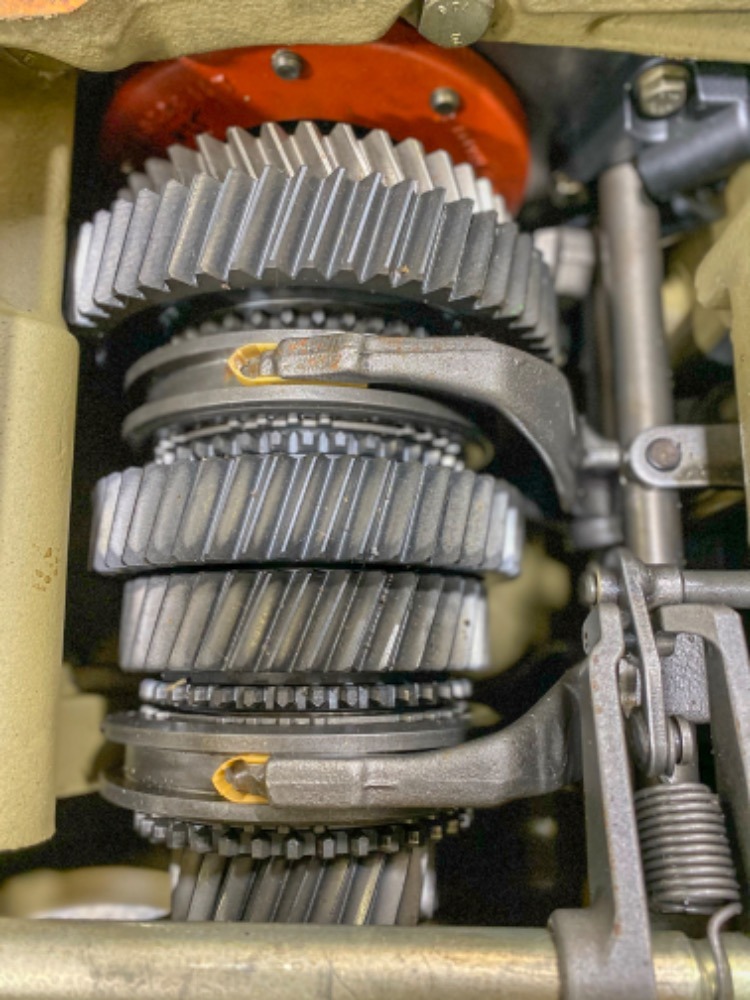

- Shift Forks L111048 (2)
- Shift Cover AL155290

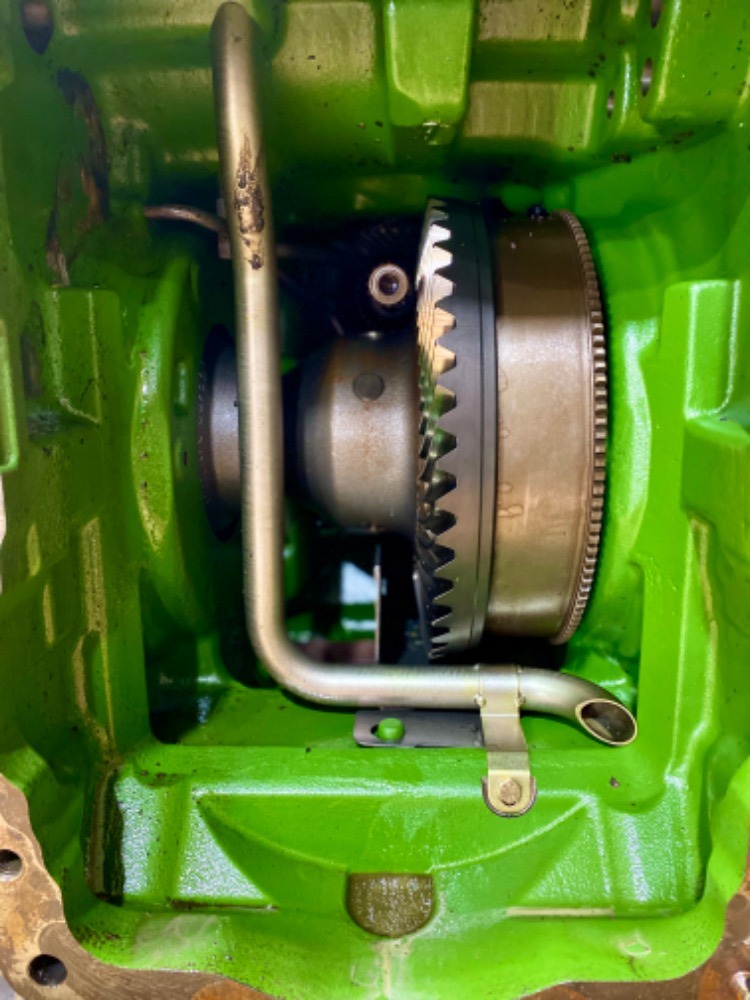

- Differential Case: AL158976 (Marked L153043 or L155485) (L155485 Large Suction Tube Port)
- Differential Case: AL163928 (Marked L157521)
- Differential Case: AL168341 (Marked L166526)
NOTE: (L166526 Requires Plug and O-Ring RE46685 or (R107770 and 51M7043)
- Differential: L153134 or L211505 and L155267 or L206105
- Ring and Pinion: AL152326, AL164690 or AL166476
Condition:
- Good Used has been visually inspected and looks good.
Upgrade Options:
- Certified will have all key specs documented to ensure the transmission and differential are within OEM specifications.
- Reconditioned will be disassembled, cleaned and inspected.
- Reassembled to new OEM specs with new OEM required parts.
Core is required on all options.
Reference:
- TE - PowrQuad™, Manually Operated Left Hand Reverser
- V - PowerQuad before Tractor (SN - 362956)
- H - PowrQuad Plus after Tractor (SN 362956 -)
- Hydraulic Pump Drive (Z = 25) L150309, L155245
- Charge Pump 25cm AL154091 - $500
- Charge Pump 41cm AL154092 - $500
