PG203187 PowrQuad Transmission

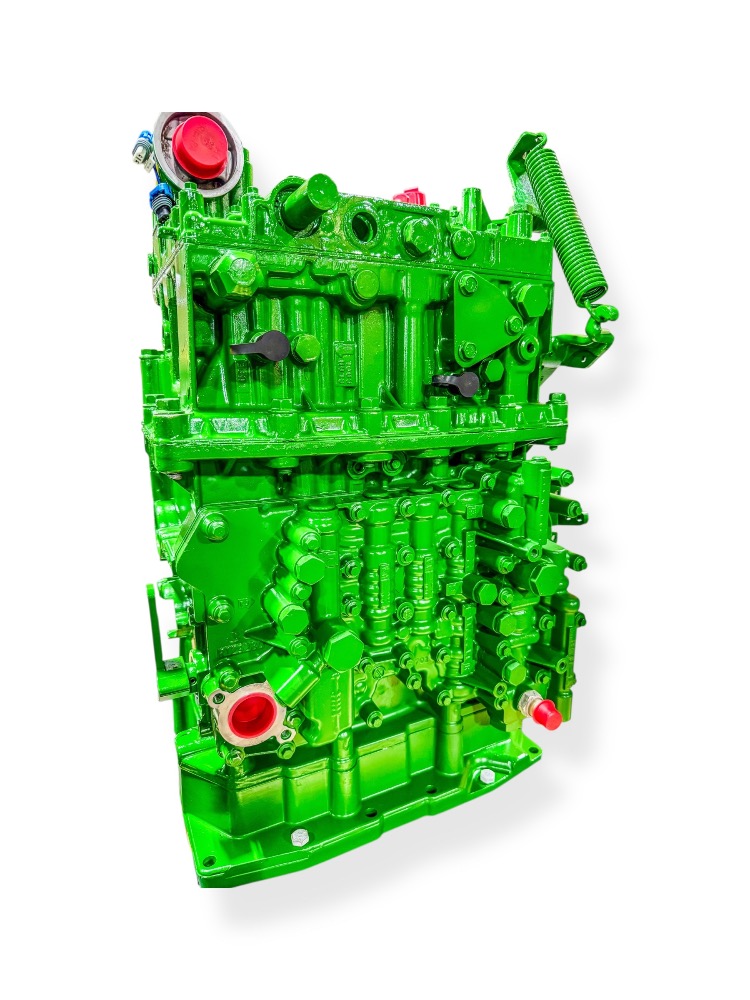

John Deere PowrQuad Transmission
without Electric Clutch Cooling Valve

⚠️ Order only from the Reman Shop...!
📱 Text or Call
573-427-6868
573-380-1997

Fitment

• 7600, 7700, 7800, 7610, 7710, 7810

Description

• 2 Lever Mechanical Shift PG203187
• Replaces PG203188 with Electric Clutch Cooling Valve
• 3 Lever Mechanical Shift PG203186
• Mechanical Shift Valve R129280
• Marked RE34645
• Can be converted to PG203209 with Control Valve RE68179 (Marked R127266)

Shipping:

• $500 one way.
• Free Core Shipping.

Core Charge:

• $1,500 upfront core deposit.
• Like-for-Like get 100% refund.

Reman Warranty Terms:

• 1 Year - $15,000
• 2 Year - $16,500
• 3 Year - $18,000
• 4 Year - $19,500

Major Transmission Parts

• Yoke RE61882
• Front Cover R129797
• Plate R127579
• Gasket R127580
• Pump Housing R121885
• Transmission Pump
  • Pump R109001 (Sub to AL234172)
  • Inner Gear R108926
  • Outer Gear R108928
  • Shaft RE39406
• Brake Planetary Case RE152013 (Marked R131223 or R134710)
• Clutch Manifold RE155061 (Marked R151447)
• Planetary (Early  SN) RE47292
  • Planetary Carrier R95359
• Planetary (Mid SN)
  • Planetary Carrier R121147
  • Clutch Hub RE57104 (Marked R113650)
  • Clutch Drum R324818

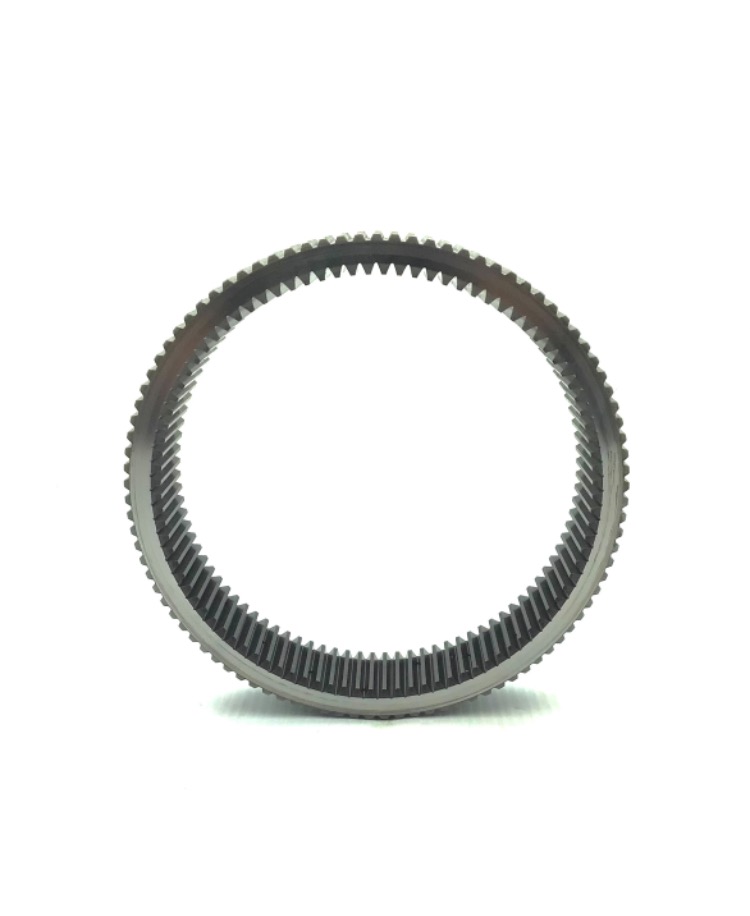

  • Ring Gear R122139
  • Spacer R121449
• Planetary (Late SN)
  • Planetary Carrier R171008
  • Clutch Hub RE172853 (Sub to RE219260) (Marked R219258)
  • Clutch Drum R324818, RE221409, RE243077
  • Ring Gear R122139
  • Spacer R176471
• Output Shaft RE201075

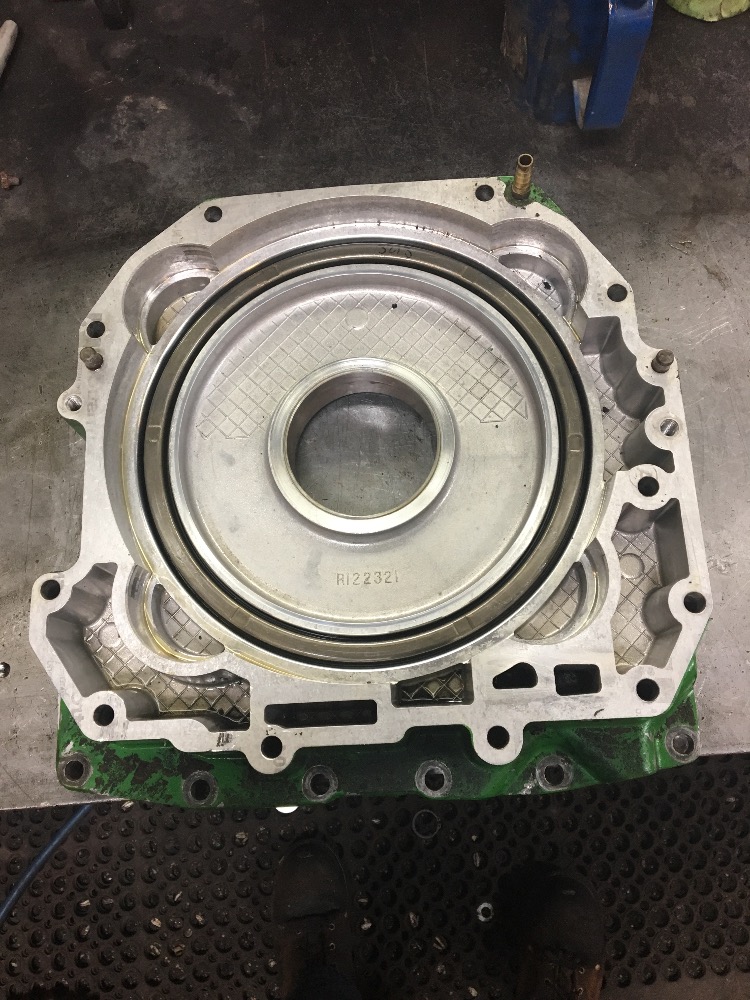

• Rear Cover R124437 or R122321
