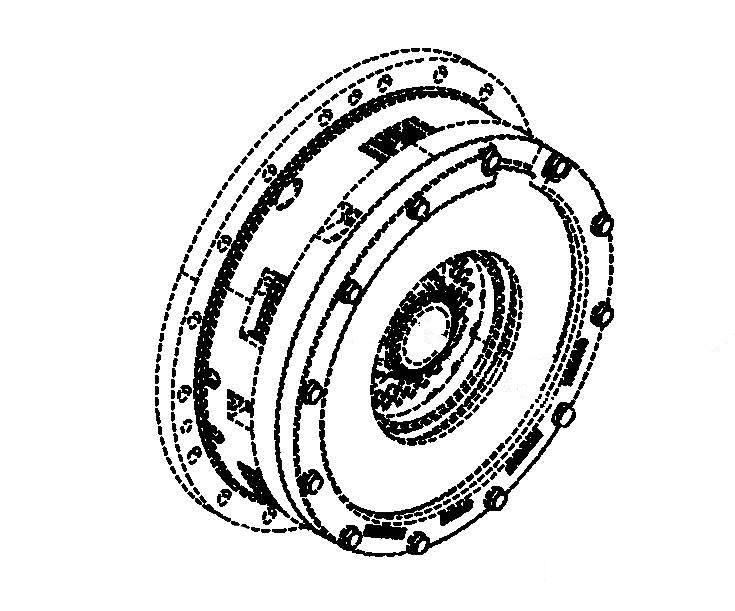

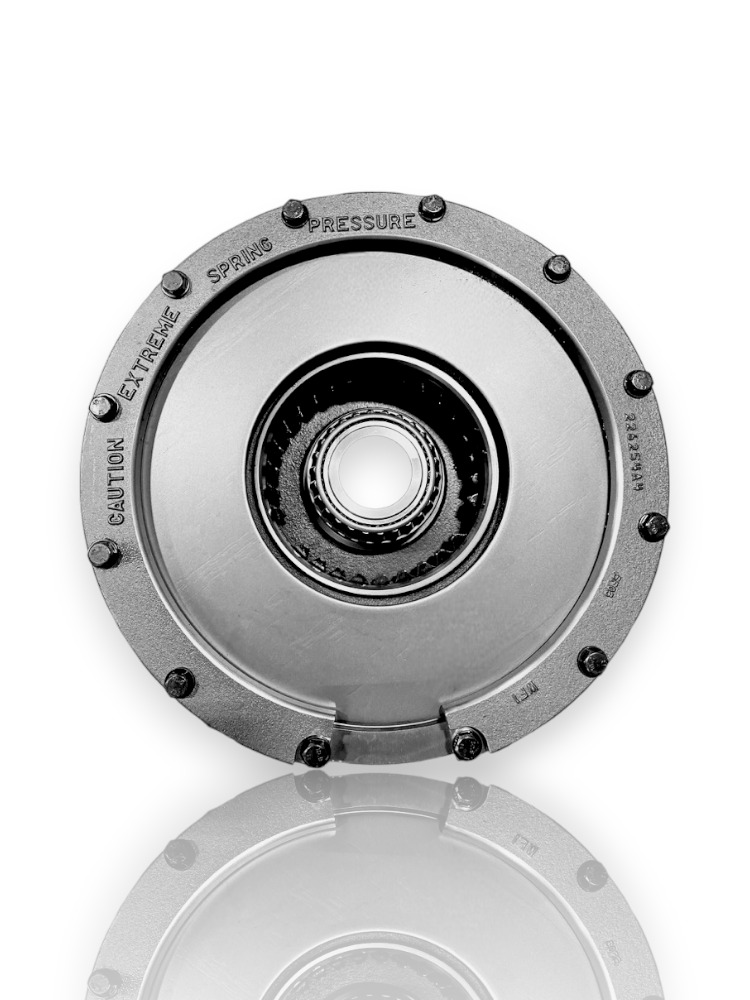

Brake Carrier

Internal Park Brake for 300, 315, 400 and 450 Series Axles.

• Prior to 2011 STX, Steiger, TJ and T9000 w/ Internal Brake
• Few 2011 - 2014 with 315 axles
• Axle Models 300, 315, 400, 410, 450, 460 Series
• Not Available from CNH

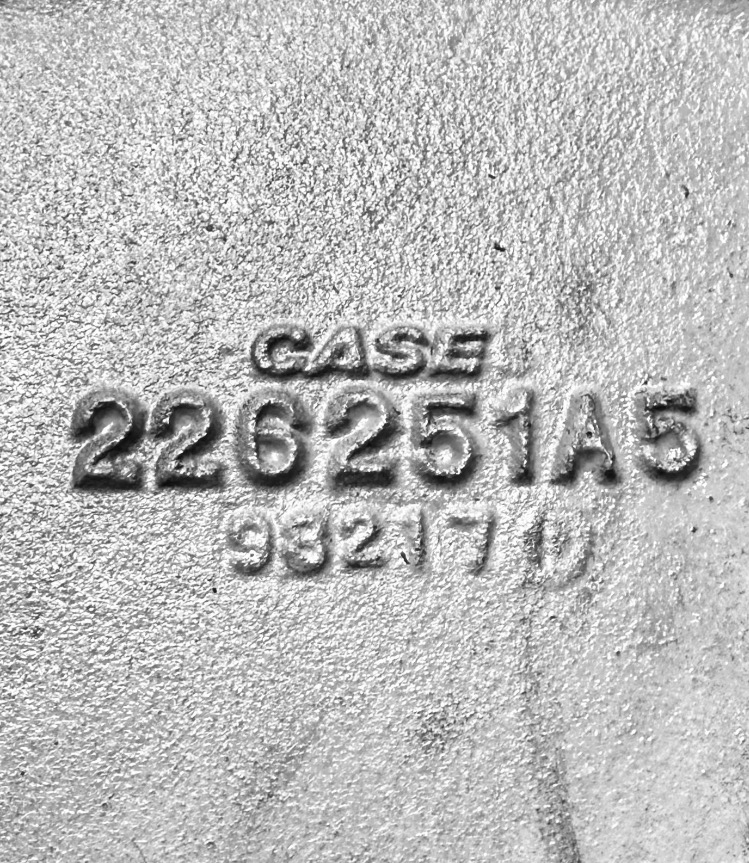

• Must be marked 226251A5, A4, A3, A2 or A1
• Rebuilt by a Case IH Dealer

Fitment:

• 9370 QuadTrac, 9380 QuadTrac
• STX275, STX280, STX325, STX330, STX375, STX380, STX425, STX430, STX450, STX480
• Steiger 280, Steiger 330, Steiger 335, Steiger 380, Steiger 385, Steiger 430, Steiger 435, Steiger 480, Steiger 485
• T9010, T9020, T9030, T9040, T9050
• TJ275, TJ280, TJ325, TJ330, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480

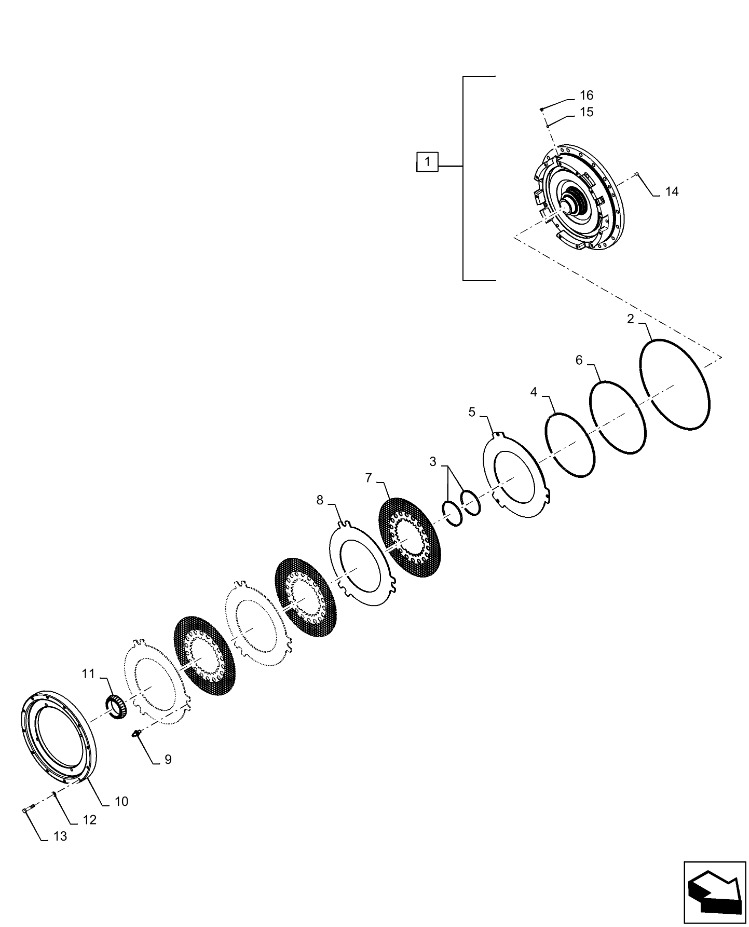

Includes:

• 398362A1 Carrier (No Longer Available from CNH)
• 398361A1 Carrier (No Longer Available from CNH)
• 226251A5 Carrier (No Longer Available from CNH)
• 178565A2 Piston
• 228194A3 Return Plate
• 353363A1 Friction Disk (3) (Sub 228192A2)
• 228193A1 Separator Plate (3)
• 226252A2 Backing Plate
• 226318A2 Park Piston
• 226254A4 Ring
• 226320A1 Washer

Related Parts:

• Carrier 47592233, 231637A1, 231637A2, 253923A1
• Differential 87471385, 87522608
• Cover with Lock 87641687, 253609A1, 253609A2, 253609A4, 87304964
• Cover without Lock 84323114, 314226A3, 84159161, 87471382, 87597982
• Case 388968A1
