9RX Rear Axle

RE577867 - Standard 88 inch Width

SKU RE577867   Stock # 398172

Purchase Options
Certified Axle - add $15,000 for Reman $65,000 + $10,000 Core
Final Drive - add $7,500 for Reman $25,000 + $10,000 Core

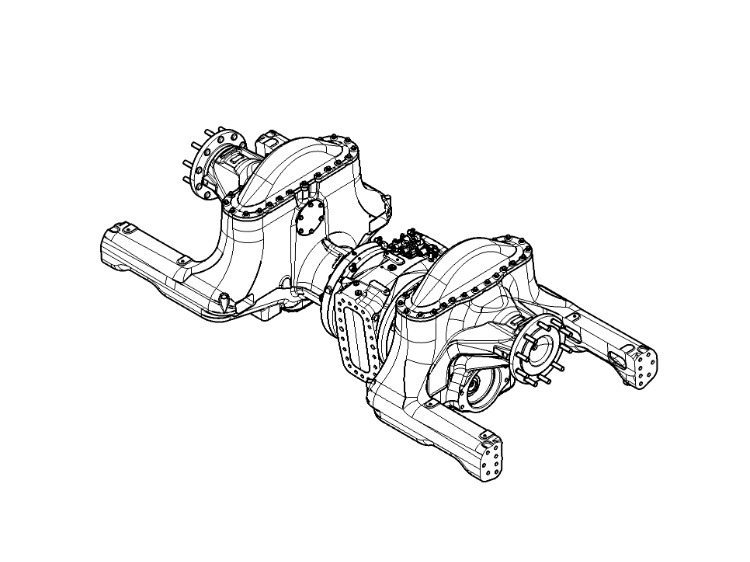

John Deere 9RX Rear Axle RE577867

  • Standard 88 inch Width
  • *Can be used for 120 inch Width with BRE10388 spacers.
  • Wide Track Axle (use with 30 inch or 36 inch Belts)
  • Rear Axle OEM List Price

What's Included: (short list)

  • Final Drive OEM List Price
  • Final Drive, Left Rear - TA18908 (Sub for RE586538 or RE581310)
  • Final Drive, Right Rear - TA18909 (Sub for RE586539 or RE581311)
  • Axle Shaft - R555084
  • Rear Differential OEM List
  • Rear Differential Case - RE583543 (Sub for RE581307)
  • Rear Input - R545943 (Sub to R572848)
  • Differential - R541381 and R539509
  • Rear Ring and Pinion - RE332944 (Z = 15/52)

General Information:

  • Complete Axle is Not Available from John Deere
  • Axle Weight - 7,500 lbs
  • Complete a Hydraulic System Flush After a Failure

Off Tractor Overhaul Costs: (bearings and seals only)

  • Cost to Overhaul Axle
  • Cost to Overhaul Final Drive
  • Cost to Overhaul Differential

S/N: 1RW9570RJHP804454
Engine Model #: Cummins QSX15
Engine S/N: 80013077
Transmission S/N: RWTD9RR004104
MFD S/N: K17-41EE and K17-43EE
Differential S/N: RWTD9RR004104


Add to Cart    Text Us! 573-242-5582



MSRP $97,500
Save $32,500!

Discontinued by OEM

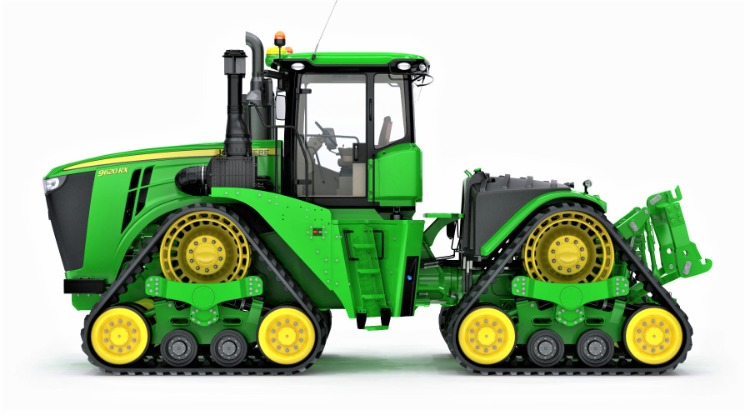

This 9RX Rear Axle will fit the following models...

John Deere
9520RX, 9570RX, 9620RX, 9470RX
Tags: 9RX Rear Axle RE577876 RE577875 RE577877



Marked Numbers
RE577867,TA18906,RE586536,RE581308,TA18908,RE586538,RE581310,TA18909,RE586539,RE581311,R555084,RE583543,RE581307,R545943,R572848,R541381,R539509,RE332944,RE577878,TA36243,TA36242

Related Parts
RE577876, RE577875, RE577877
