1500 Series Front Axle

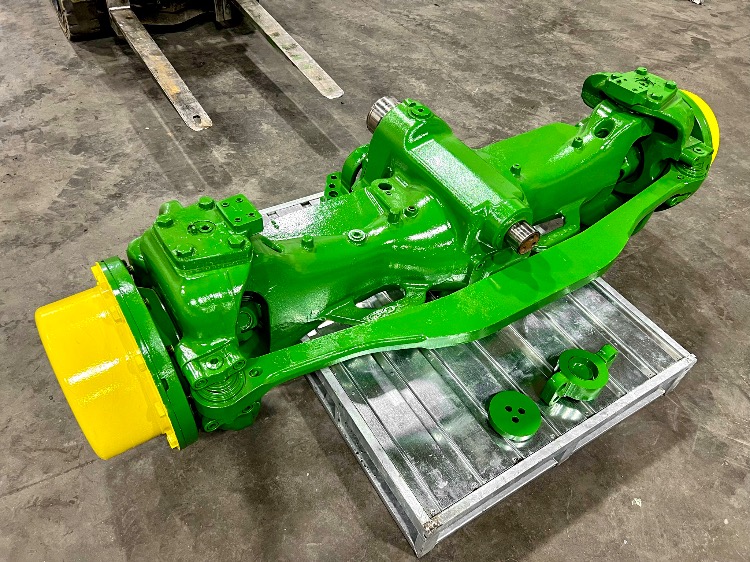

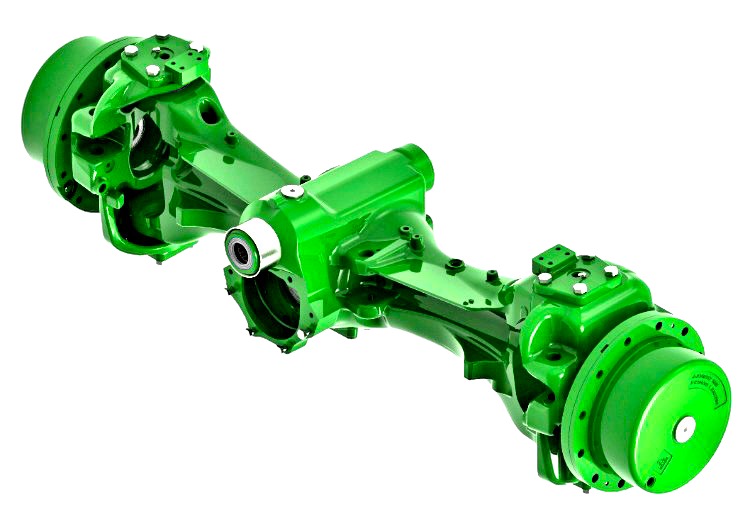

John Deere 1500 MFWD Axle (Two-Piece)

• NOTE: The average cost to repair YOUR axle is $30,000.
• If you can repair your axle for less than $30,000, you should repair it.

Buying Options:

• Partial Axle (less final drives, steering cylinders, etc).
• Complete Axle

Partial Axle - What's Included?

• Axle Housing, Right
• Axle Housing, Left
• Differential Cover
• Differential
• Ring and Pinion
• Input Drive Gears (4 or 5 Step)
• Input Shafts (Male and Female)

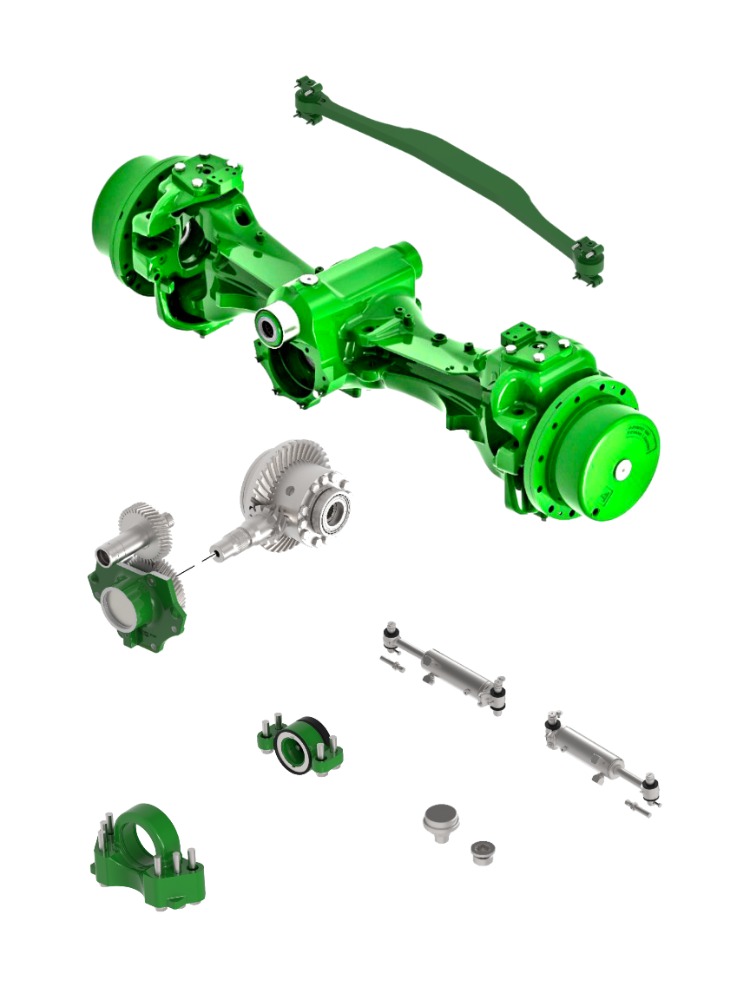

Complete Axle - What's Included?

• Partial Axle
• Final Drives (Left and Right)
• Steering Cylinders

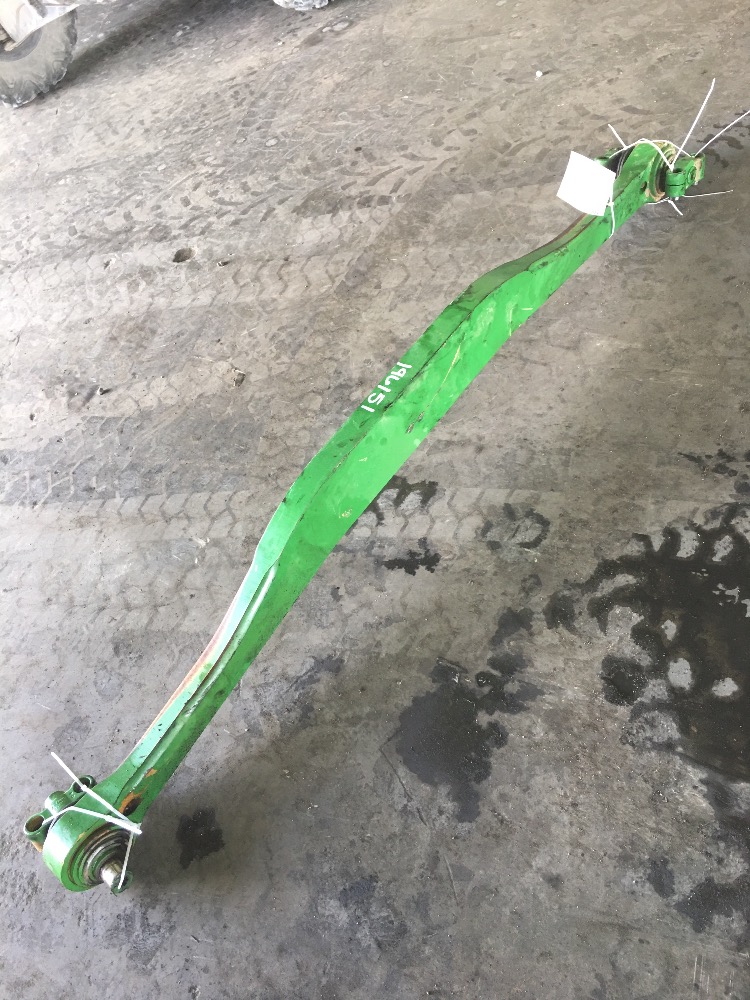

• Tie Rod
• Axle Pivot Supports RE62204, RE593259, RE227477

Fitment:

• 8130, 8230, 8330, 8430, 8530
• 8225R, 8245R, 8270R, 8295R, 8320R, 8345R (SN 000101 - 053099)
• 8235R, 8260R, 8285R, 8310R, 8335R, 8360R (SN 016001 - 090000)
• 8245R , 8270R, 8295R, 8320R, 8335R, 8345R, 8370R (SN 090001 - 170000)
• 8400R (SN 115000 - )
• 8R 230, 8R 250, 8R 280, 8R 310, 8R 340, 8R 370, 8R 410 (SN 170001- )

Core Charge:

• $5,000 core charge is paid up front.
• Fully refundable with a Like-for-Like core.
