John Deere PowrSync™ Transmissions
Description:
- 24 Speed PowrSync Transmission
Replaces: PG201830, PG201920, RE327097
Process:
- Disassemble, clean and inspect all parts
- Replace worn or damaged parts with good used parts.
- Assemble to OEM specifications with new OEM wear parts.
- Update to high volume internal tranmission pump.
Fitment:
- 9100, 9200, 9300, 9400 (R124974, R175282, RE175879, RE70314)
- 9120, 9220, 9320, 9420 (R124974, R175282, RE178134, RE70305)
- 9230, 9330, 9430 (R124974, R175282, RE178134, RE70305)
- 9360R, 9410R, 9460R (R310818, R313301, RE310819, RE313304)
Core Charge:
- $5,000 is paid upfront and refundable
Warranty:
- 1 Year Parts
- 1 Year Workmanship Labor
ALL transmissions must be installed with the updated extenal lube line (RE263694 or RE289272) to lubricate the tranmission shaft.
See DTAC 80207 or DTAC 79556 with PTO.
Shipping:
- Free Standard Truck Freight (both ways).
Details:
9MST-5 is a direct replacement for 9000 - 9R Tractors,

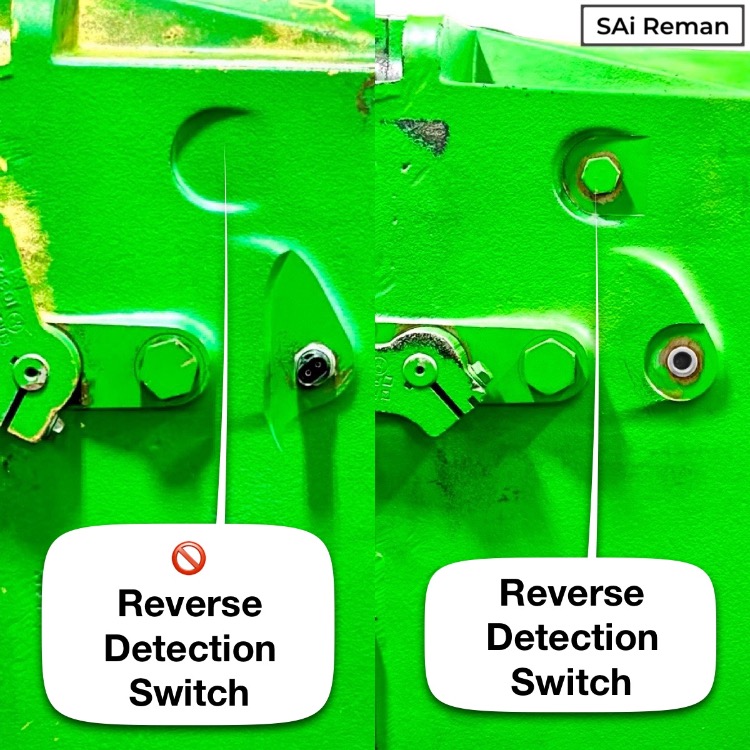

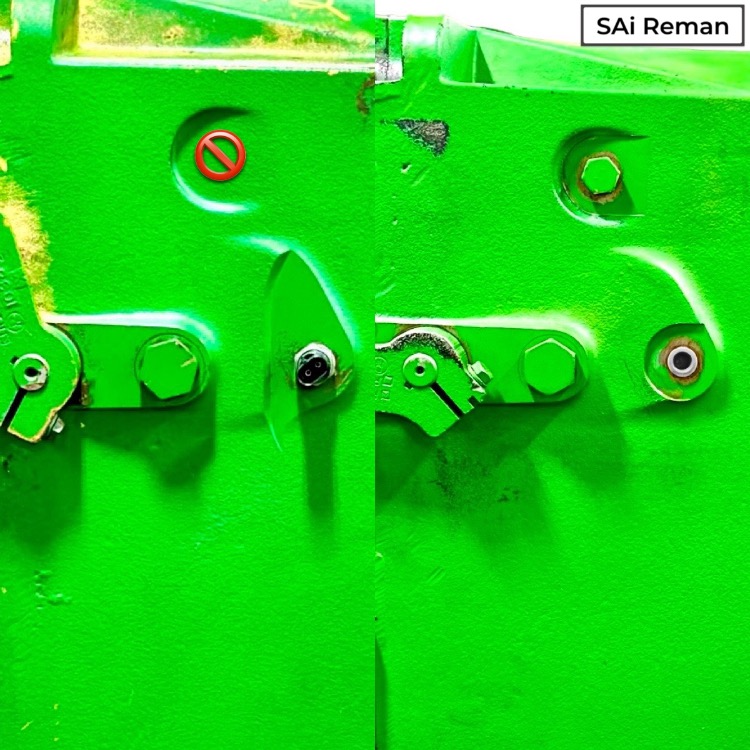

but it DOES NOT have a port for the Reverse Detection Switch (RE153769.
This switch IS NOT a Reverse Safety Switvh and IS NOT mandatory to operate the tractor. It only affects Reverse when using the Implement Management System (IMS) (if equipped).
If you do use the IMS, it only effects a few functions of it, like Hitch and PTO usage in reverse.
The switch must be plugged into the harness to prevent codes and zip tied back to the harness to keep it out of the way.
Marked Numbers:
PG201830, PG201920, RE327097, R310818, R313301, RE310819, RE313304, R124974, R175282, RE178134, RE70305, RE175879, RE70314
