Purchase Options
Certified Partial Axle
- Axle W/O Final Drives
- List $26,750 Plus Labor
$15,000 + $5,000 Core
Reman Partial Axle
- Axle W/O Final Drives
- List $26,750 Plus Labor
$20,000 + $5,000 Core
Certified Axle
- Axle With Final Drives
$20,000 + $5,000 Core
Reman Axle
- Axle With Final Drives
$25,000 + $5,000 Core
Reconditioned on the shelf ready to ship.
AL158127 Two-Piece Dana 740/101 Axle
- Dana 740/101 Axle
- Heavy Duty Version with Dana 750 Final Drives
- Factory on 6615, 6715, 7220, 7320 Tractors
- Upgrade for 7130, 7130 Premium, 7230, 7230 Premium Tractors
- AL171555, AL173216, AL174884
- Will Replace 740 with AutoTrac if the Wheel Angle Sensor is not used.
- AL162869, AL171556, AL173217, AL175358
- Replaces AL151674, AL151677 as an upgrade.
- Replaces AL151676, AL151679, AL158464 with conversion drop box.
- Replaces AL158465, AL171561, AL173218 with conversion drop box.
NOTE: Early 740 Axle Components were not consistant, so any indivdual part request required a Marked # off the part.

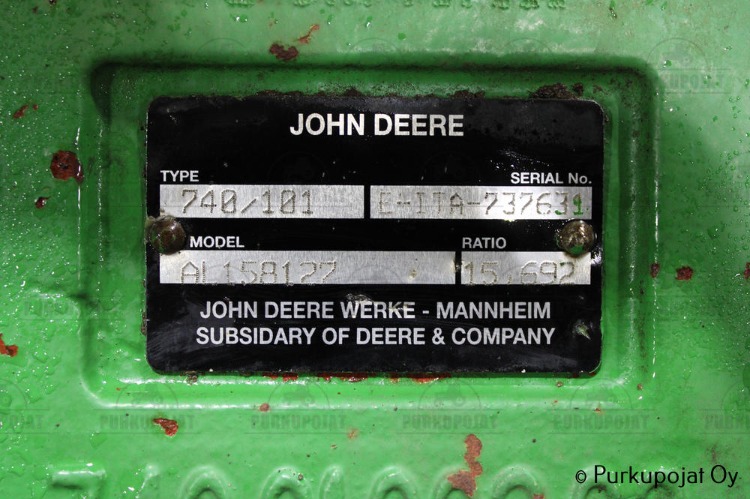

- This Axle is Marked AL158127 and 740/101
- Clockwise Forward Rotation

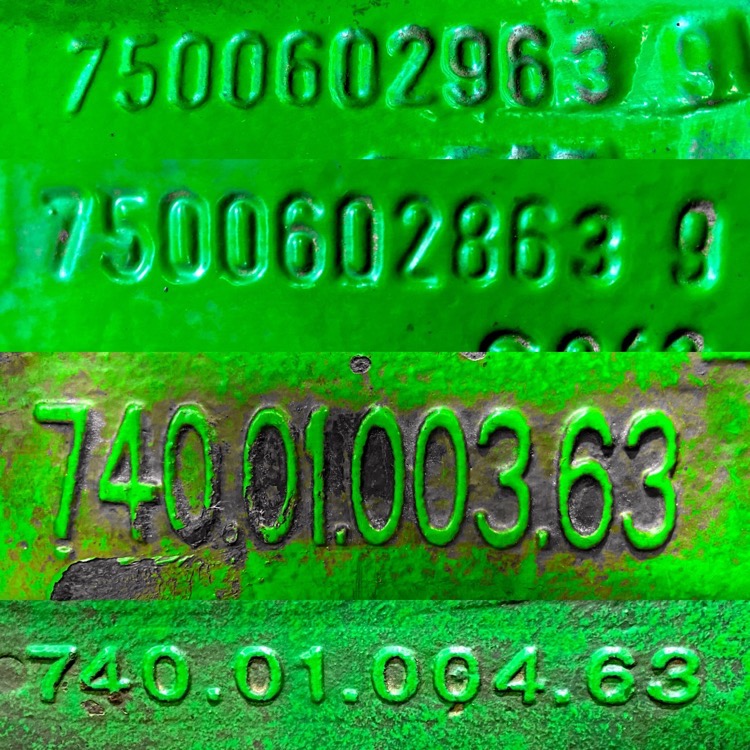

- RH Long Axle Housing AL160547, 740.01.003.63 - $8,000
- LH Short Axle Housing AL160548, AL171832, 740.01.004.63 - $8,650
- RH Steering Knuckle L157366 (Marked 750.06.029.619, 750.06.029.639)
- LH Steeing Knuckle L157368 (Marked 750.06.028.619, 750.06.028.639)
- Driveshaft AL177178
- Ring and Pinion 15.692 AL160177 (Subs to AL174435) - $1,750

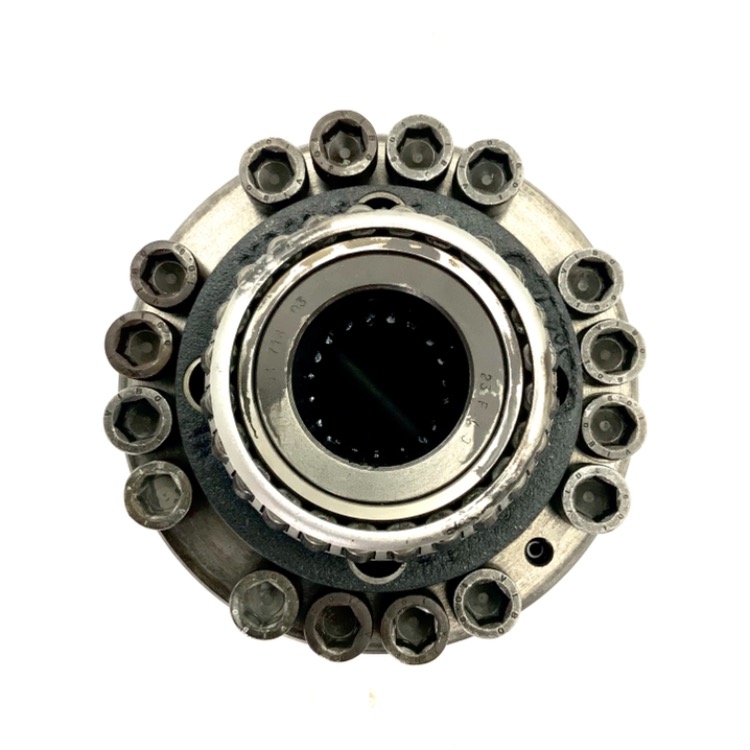

- Differential - $4,500
- Differential AL160210
- Gear Set AL160133 (Subs to AL166520)
- Clutch Disk AL160176
- Steering Cylinder AL160538 (Marked 740.24.462.001)- $3,250
- Upgrade to HD is an Additional $5,000 if your core is Standard.
- Related Axles: AL219163, AL219165
Certification Process
- Pull 3 Oil Samples for Analysis
- Check for Axle Leaks
- Check for Steering Cylinder Leaks
- Perform a Pivot Pin Inspection
- Perform a King Pin Inspection
- Perform a Tie Rod inspection
