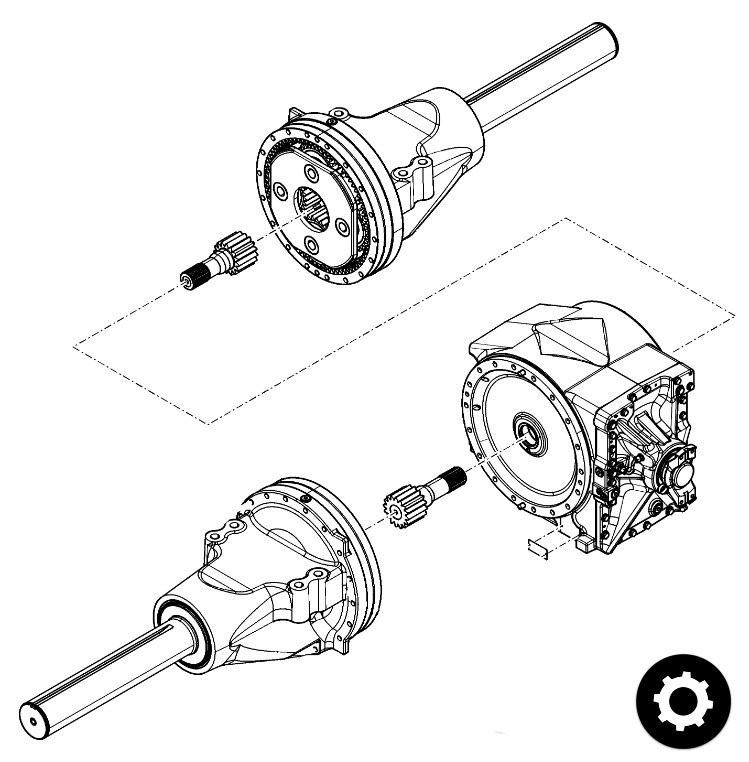

CNH 450 and 460 Series Axles

CNH 450 Series Axles where used on 4wd tractors under 500 hp from 2006 to 2014.

115 mm (4.5 inch) Axles with or without Differential Lock

• 450FW - 87365639 Front Axle without Lock
• 460FW - 87365608 Front Axle with Differential Lock
• 450RW - 87365643 Rear Axle without Lock
• 460RW - 87365625 Rear Axle with Differential Lock

What's Included:

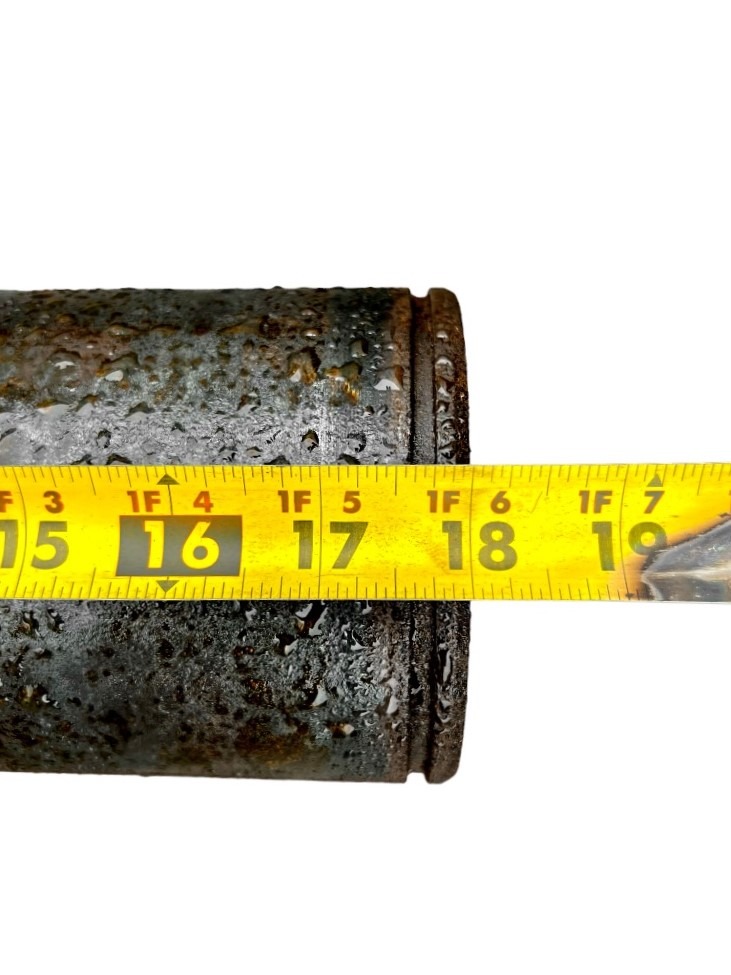

• 115 mm (4.5 inch) Axle Final Drives
• Differential Case with Differential, Ring and Pinion, Brake, Carrier and Cover

Fitment:

• STX380, STX430, STX480, Steiger 380, Steiger 430, Steiger 480, Steiger 385, Steiger 435, Steiger 485, Steiger 350, Steiger 400, Steiger 450, Steiger 500
  TJ380, TJ430, TJ480, T9030, T9040, T9050, T9.390, T9.450, T9.505, T9.560

Warranty:

• 2 Year or 2,000 Hour Part and Labor Warranty
• Oil Scans required at 50 Hours, then every 250 Hours thereafter.
• Hydraulic System Flush documentation is required to be on file.

Shipping:

• Free Standard Shipping in our 3 day service area.

Part Reference:

• 115 mm (4.5 inch) Axle Final Drives

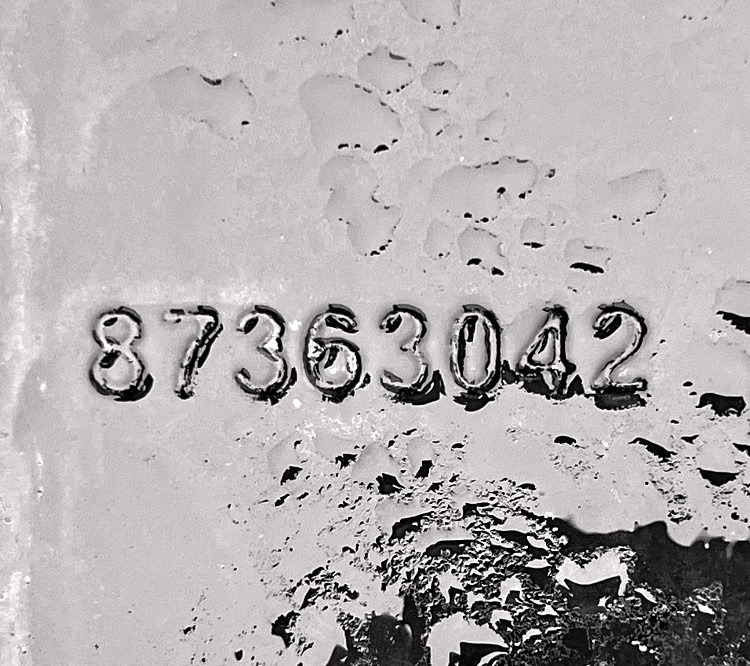

  • Axle Housing 87363036 (Marked 87363042)
    • NOTE: OEM Parts Catalog shows 313600A2

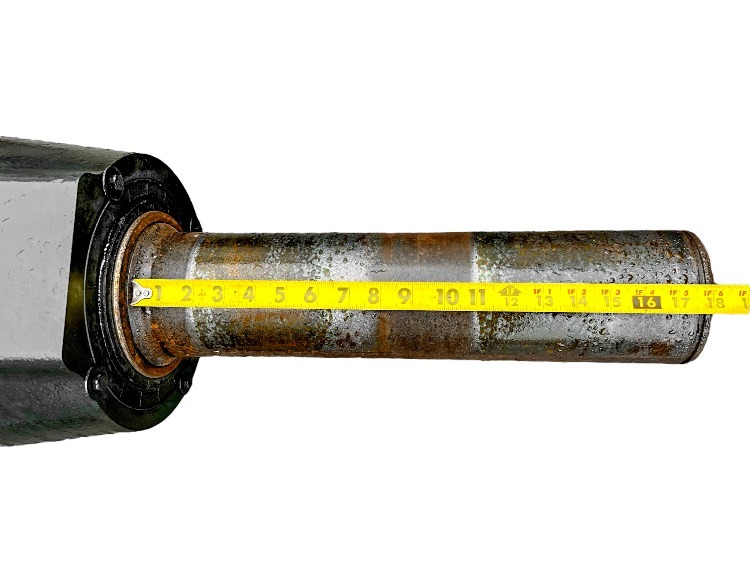

  • Axle Shaft 84230465, 87363294
    • NOTE: OEM Parts Catalog shows 310701A5, 84225937, 84512057
  • Gear Set 360761A1, 388370A1, 310694A2, 310697A3, 310693A1, 310692A1
• NOTE: Some OEM Part Catalogs show 425 Differential but that is incorrect.
• 450FW Front Differential without Lock
  • Differential Case 388968A13
  • Front Cover 86985627
  • Front Ring and Pinion 302259A2, 236673A1, 302259A1, 48155452
  • Differential without Lock 87471385
  • Differential w/o Lock Cover 84159161, 84323114, 314226A3, 87471382, 87597982
  • Differential Carriers 47592233, 398362A1
• 460FW Front Differential with Lock
  • Differential Case 388968A1
  • Front Cover 86985627
  • Front Ring and Pinion 302259A2, 236673A1, 302259A1, 48155452
  • Differential with Lock 87471385
  • Differential with Lock Cover 84159208 or 84323113
  • Differential Carriers 47592233, 398362A1
• 450RW Rear Differential without Lock
  • Differential Case 388968A1
  • Rear Cover 86985626
  • Rear Ring and Pinion 236672A2, 302260A1, 48155460
  • Differential without Lock 87471385
  • Differential w/o Lock Cover 84159161, 84323114, 314226A3, 87471382, 87597982
  • Differential Carriers 47592233, 398362A1
• 460RW Rear Differential with Lock
  • Differential Case 388968A1
  • Rear Cover 86985626
  • Rear Ring and Pinion 236672A2, 302260A1, 48155460
  • Differential with Lock 87471385
  • Differential with Lock Cover 84159208 or 84323113
  • Differential Carriers 47592233, 398362A1

Detailed Fitment:

• STX Steiger Series (2006 - 2007)
  • STX380
  • STX430
  • STX480
• Steiger Series (2006 - 2007)
  • Steiger 380
  • Steiger 430
  • Steiger 480
• Steiger Series Tier 3 (2007 - 2011)
  • Steiger 385
  • Steiger 435
  • Steiger 485
• Steiger Series T4A (2011 - 2014)
  • Steiger 350 (MY11 - MY14)
  • Steiger 400 (MY11 - MY14)
  • Steiger 450 (MY11 - MY14)
  • Steiger 500 (MY11 - MY14)
• TJ Series (2006 - 2007)
  • TJ380
  • TJ430
  • TJ480
• T9000 Series I (2006 - 2007)
  • T9030
  • T9040
  • T9050
• T9000 Series II (2007 - 2011)
  • T9030
  • T9040
  • T9050
• T9 Series T4A (2011 - 2014)
  • T9.390 (MY11 - MY14)
  • T9.450 (MY11 - MY14)
  • T9.505 (MY11 - MY14)
  • T9.560 (MY11 - MY14)
