115 mm (4.5 inch) Final Drive

115 mm (4.5 inch) HD Final Drive

Used on Axles 87365639, 87365643, 87365608, 87365625

• Axle ID 450FW, 450RW, 460FW, 460RW

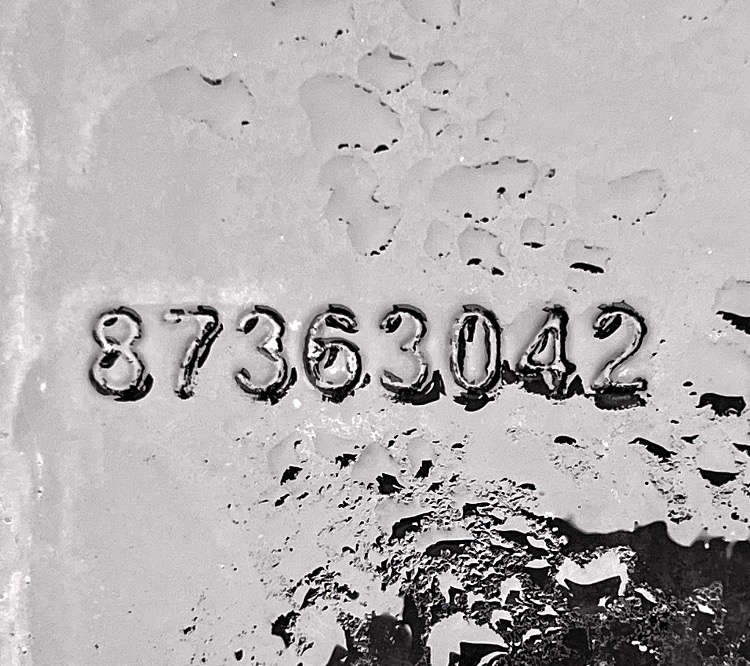

• 87363036 Axle Housing (Marked 87363042)
  NOTE: Axle Housing has been discontinued by CNH.

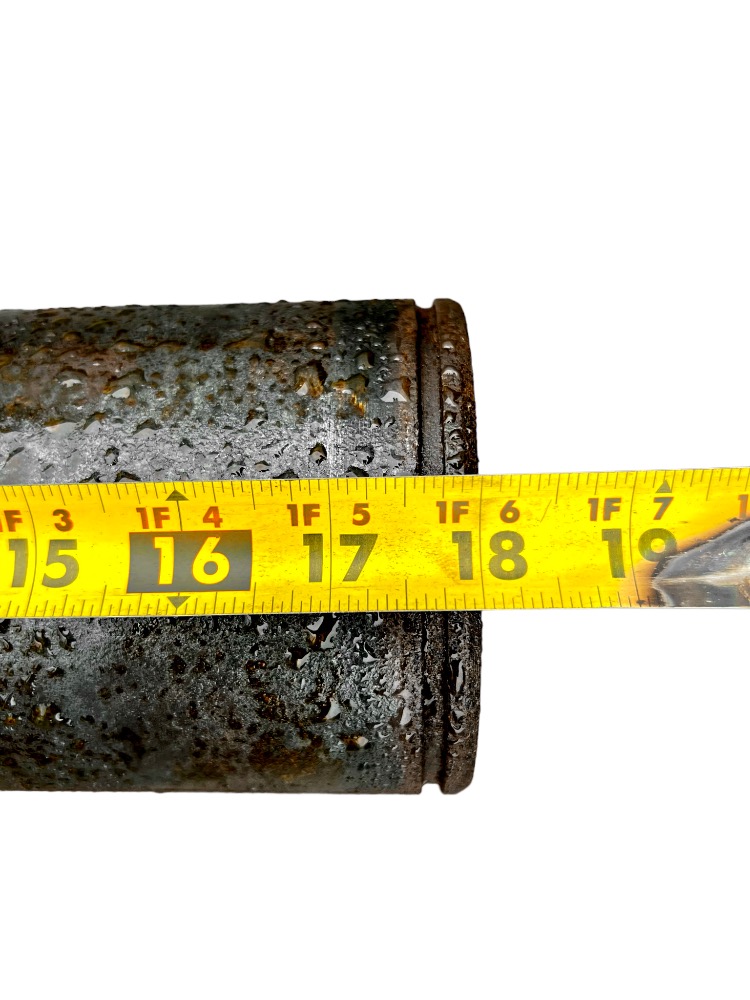

• 84230465 Axle Shaft, 115 mm (87363294)
• 360761A1 Ring Gear
• 388370A1 Carrier
• 310694A2 Planetary Gears
• Gear Set 360761A1, 388370A1, 310694A2, 310697A3, 310693A1, 310692A1
• NOTE: OEM Parts Catalog show Axle Housing 313600A2
• NOTE: OEM Parts Catalog show Axle Shaft 310701A5, 84225937, 84512057

Fitment:

• STX Steiger Series (2006 - 2007)
• STX380
• STX430
• STX480
• Steiger Series (2006 - 2007)
• Steiger 380
• Steiger 430
• Steiger 480
• Steiger Series Tier 3 (2007 - 2011)
• Steiger 385
• Steiger 435
• Steiger 485
• Steiger Series T4A (2011 - 2014)
• Steiger 400 (MY11 - MY14)
• Steiger 450 (MY11 - MY14)
• Steiger 500 (MY11 - MY14)
• TJ Series (2006 - 2007)
• TJ380
• TJ430
• TJ480
• T9000 Series I (2006 - 2007)
• T9030
• T9040
• T9050
• T9000 Series II (2007 - 2011)
• T9030
• T9040
• T9050
• T9 Series T4A (2011 - 2014)
• T9.450 (MY11 - MY14)
• T9.505 (MY11 - MY14)
• T9.560 (MY11 - MY14)
