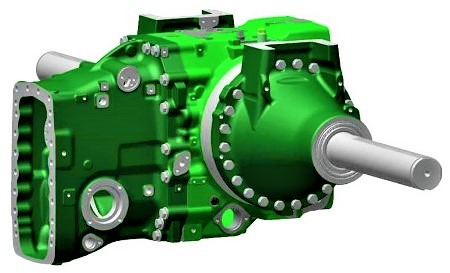

120 mm x 118.5 inch Rear Axle

120 mm x 118.5 inch, 18 Bolt Axle

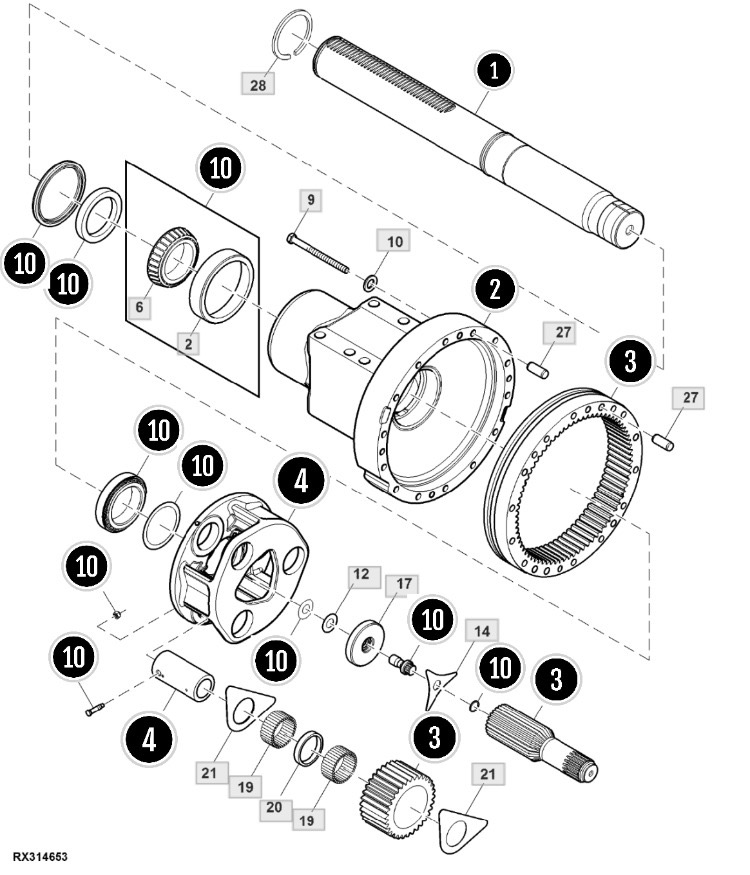

What's Included:

• Axle Housing R322716 (Marked R322716)
• Axle Shaft R337052, R168165
• HD Planetary R296985
• Ring Gear R220591
• Planetary Gears R560119
• Pinion Shaft R314670

Fitment:

• ​8245R, 8270R, 8295R (SN 090001 - 1700000

Reman Axle Warranty:

• 1 Year or 1000 Hours

Reman Axle Labor Warranty:

• 1 Year Labor Warranty

Reman Axle Labor Reimbursement:

• Rear Axle Seals R&R = 4.5 Hours
• Rear Axle R&R = 6 Hours
• Rear Axle Bearings, Seal and R&R = 12 Hours

Shipping:

• Free Shipping (one way) in our Standard Zones to a Verified Commercial Business.
• Additional Fees Apply Outside of our Standard Zones or to a Non-Verified Commercial Business.

Core Value: Up to $2,500

• Core is Complete and Like-for-Like matching the part sold.
• Core is out of the same SN machine the part was installed into.
• Core shows no signs or prior attempts to repair.
• Core is returned 60 days from orginal invoice date.
• Core original dealer diagnostics and dealer installation work orders are on file with our warranty department.
• Each point has a 50% core credit deduction up to 100%. (8/1/2022)
