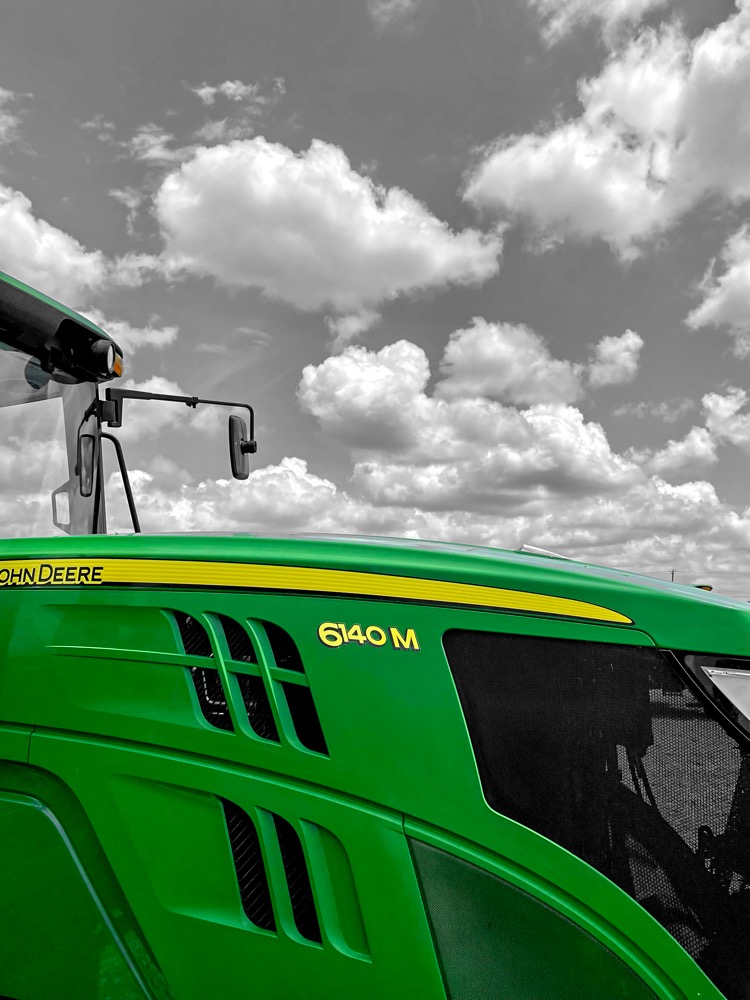

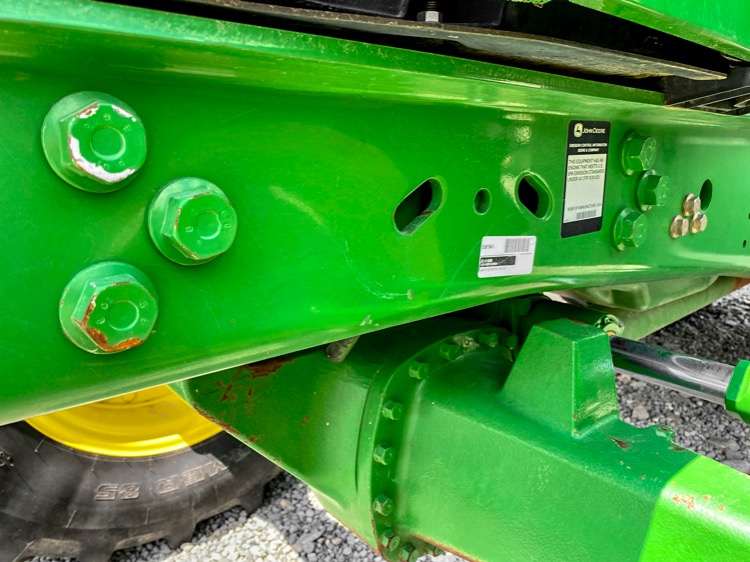

6140M iT4 MFWD Axle without TLS
● Trapezoid Design Axle
● 8 Wheel Bolts

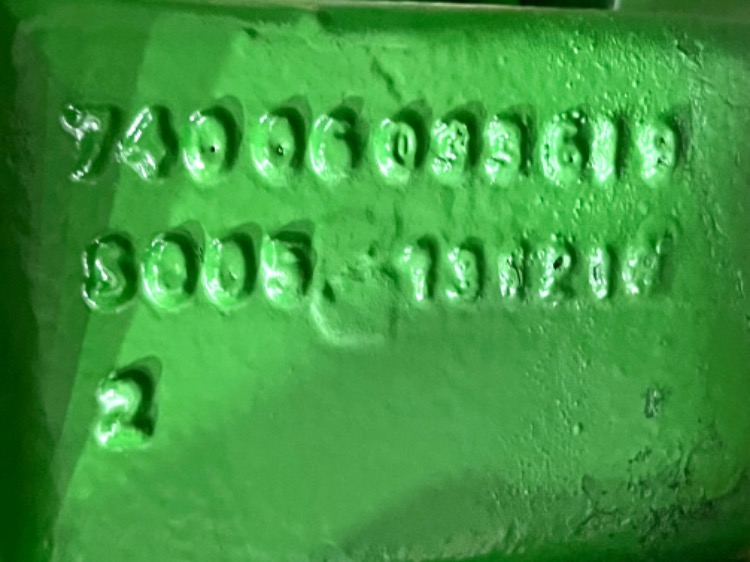

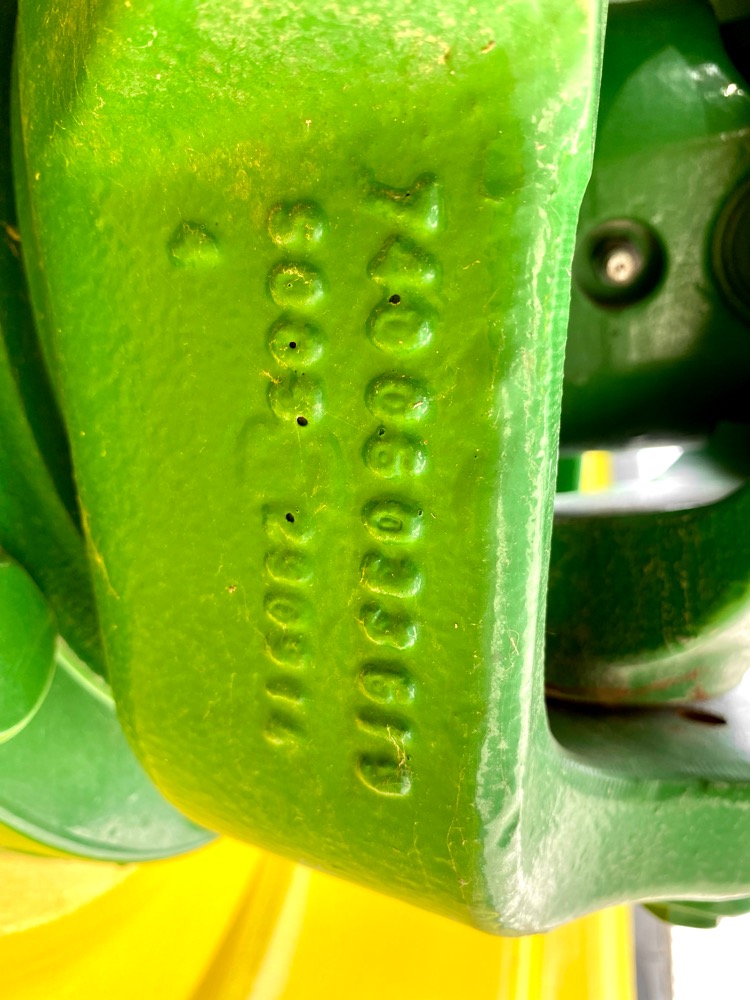

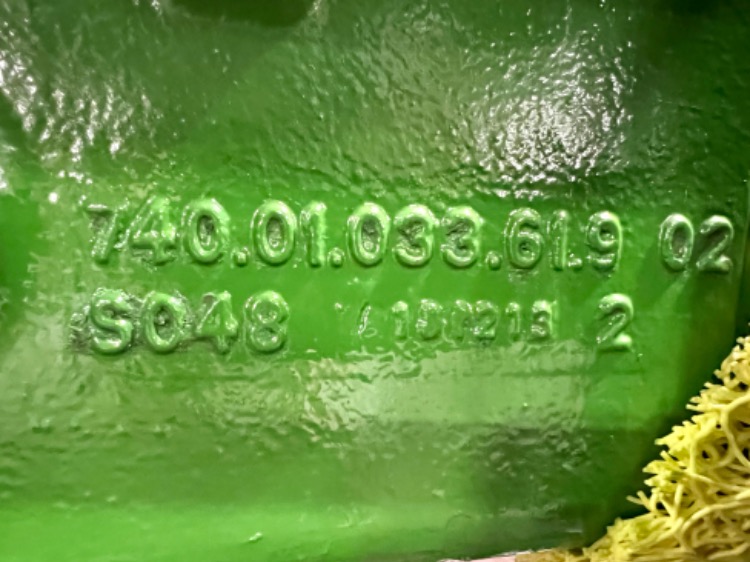

● Dana 740 Axle
● Ratios 15.692 or 17.50
● AutoTrac with or without

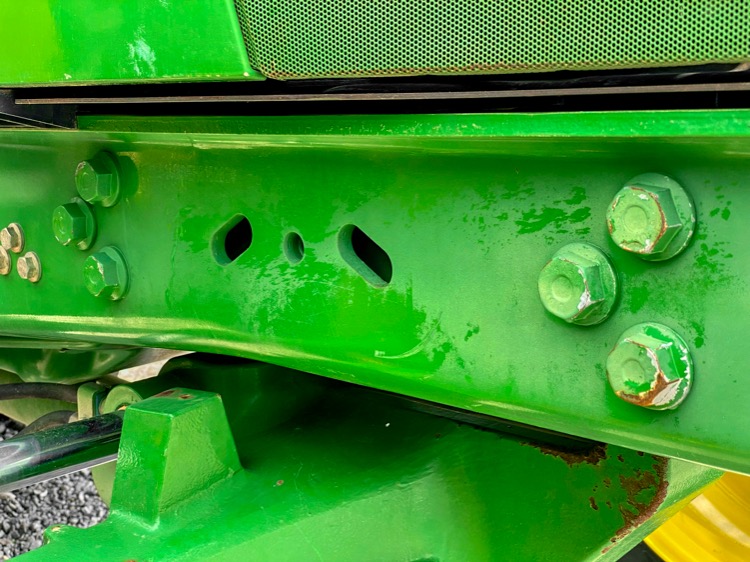

● Small Frame Rotation
● Replacement Axles
● HD Upgrade Packages
Replaces these Part Numbers:
AL205814, AL219162 15.692
AL205815, AL219164 17.500 (R&P AL174538)
AL216512, AL219163 15.692 AutoTrac
AL216513, AL219165 17.500 AutoTrac
Includes:
Axle less Final Drives - $21,000
Good Used $12,600
Reconditioned $15,750

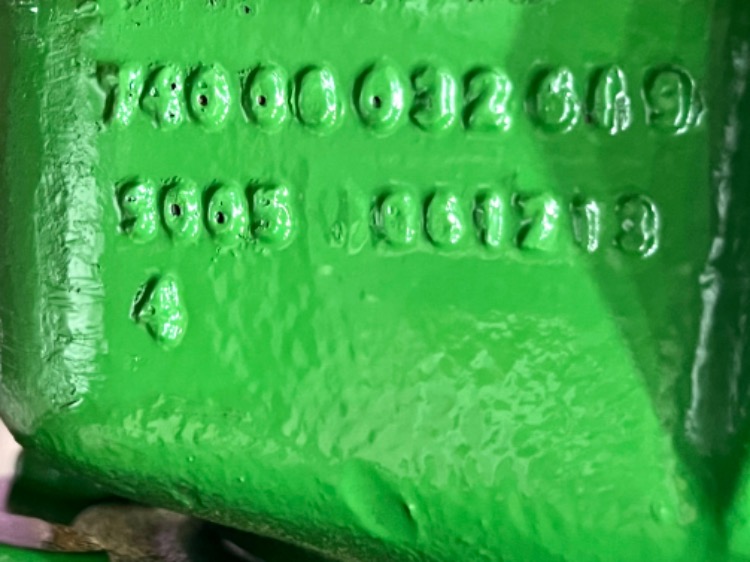

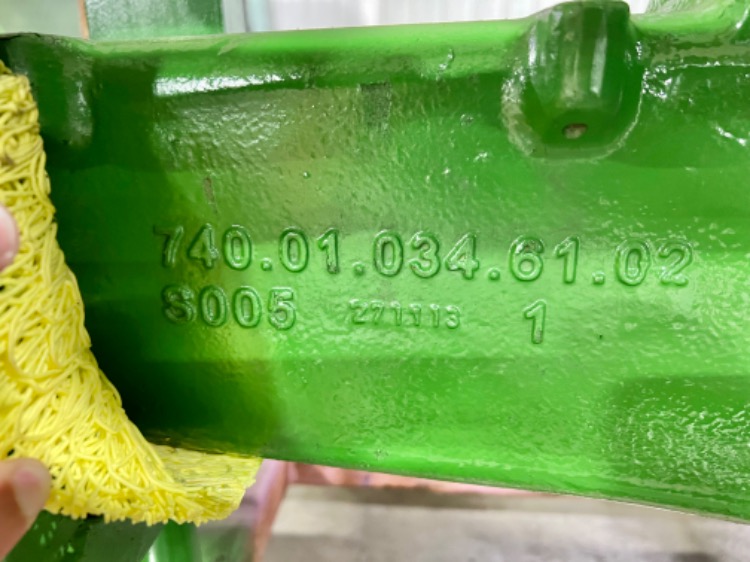

- Axle Housing AL210008
- Axle Housing AL210005
- Ring and Pinion AL174435
- Differential AL161278, AL210001

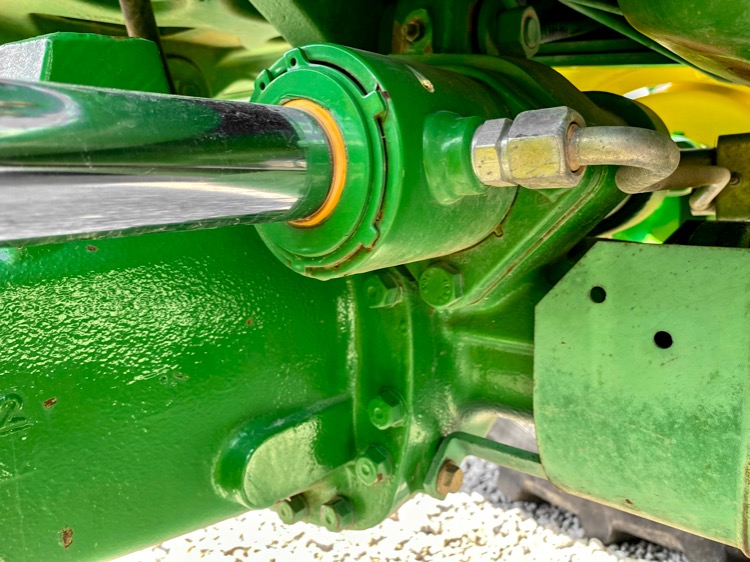

- Steering Cylinder AL160538
Final Drive - $17,000
Good Used $10,250
Reconditioned $12,750
- Planetary L209661
- Planetary Gears AL210012 (Sub for L209658) (4)
- Ring Gear L217835 (Sub for L204840)
- Drive Hub L174121

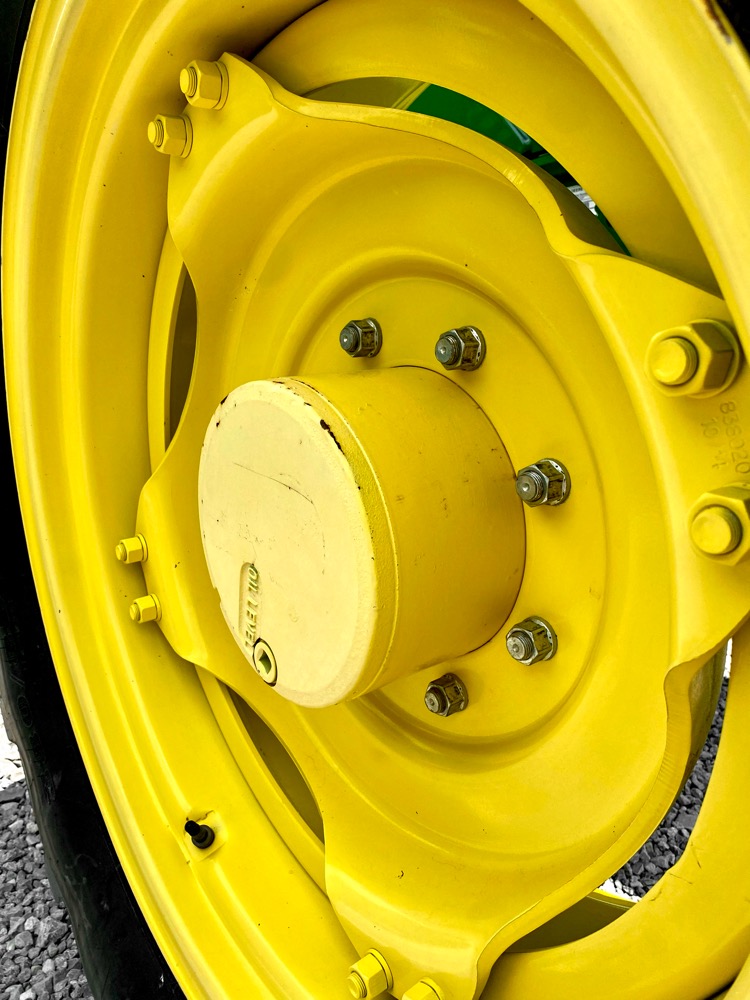

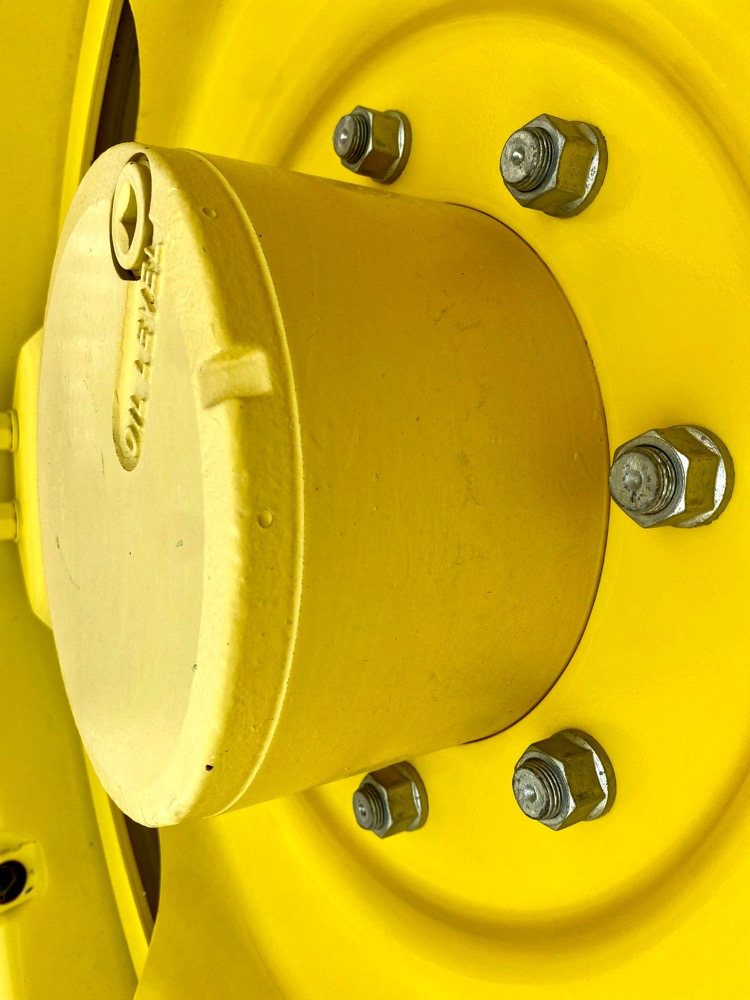

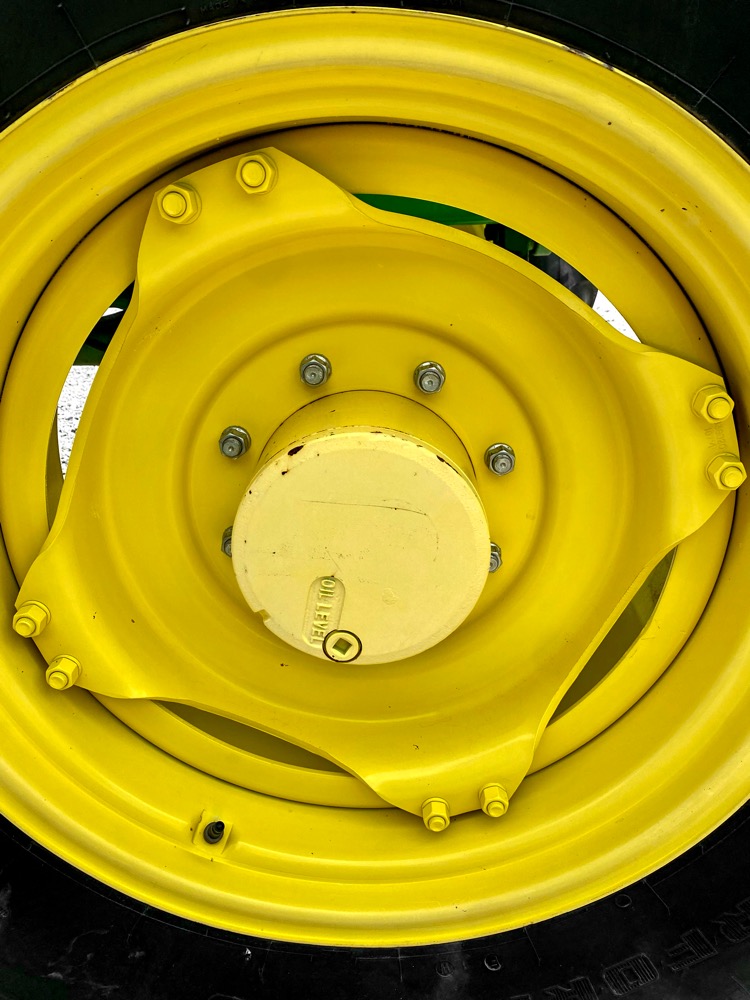

- Wheel Hub (8 Bolt) L209659 or AL210013
- Driveshaft AL209984

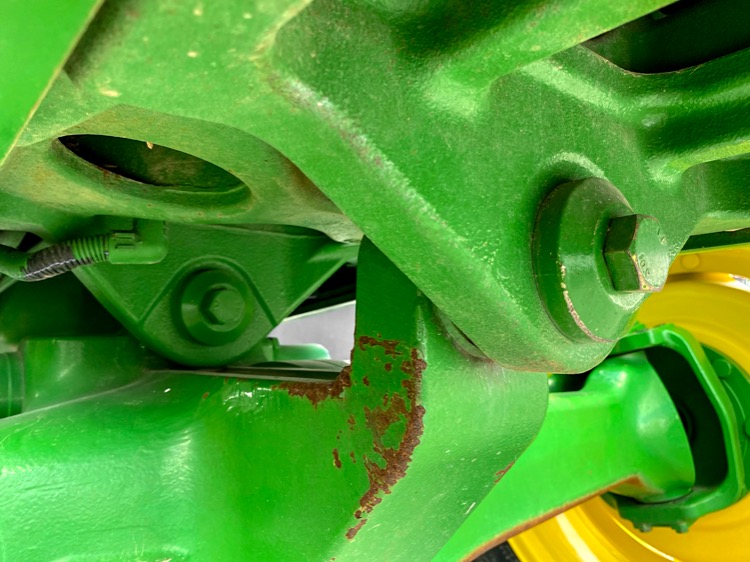

- Knuckle, Left L209654
- Knuckle, Right L209655
iT4
