Rear Flanged Axle

⚙️ 9/16 inch HD Rear Axle Final Drive with 35T Axle

▪️ 9/16 inch Flanged Axle Wheel Bolts (5510, 5520, 5525, 5E, 5M)

• SU34078 - Carrier (Marked L101359) (replacement for L101359) (Sub PY0468)

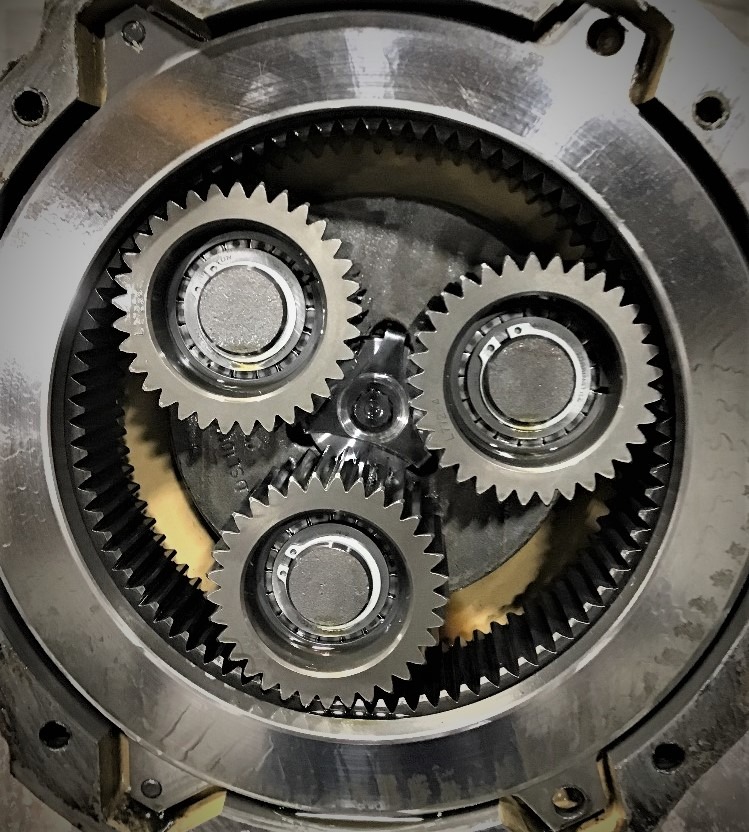

• L113164 - Planetary Gears (Marked L113164) Qty 3
• L158672 - Planetary Carrier (Subs to L171757)

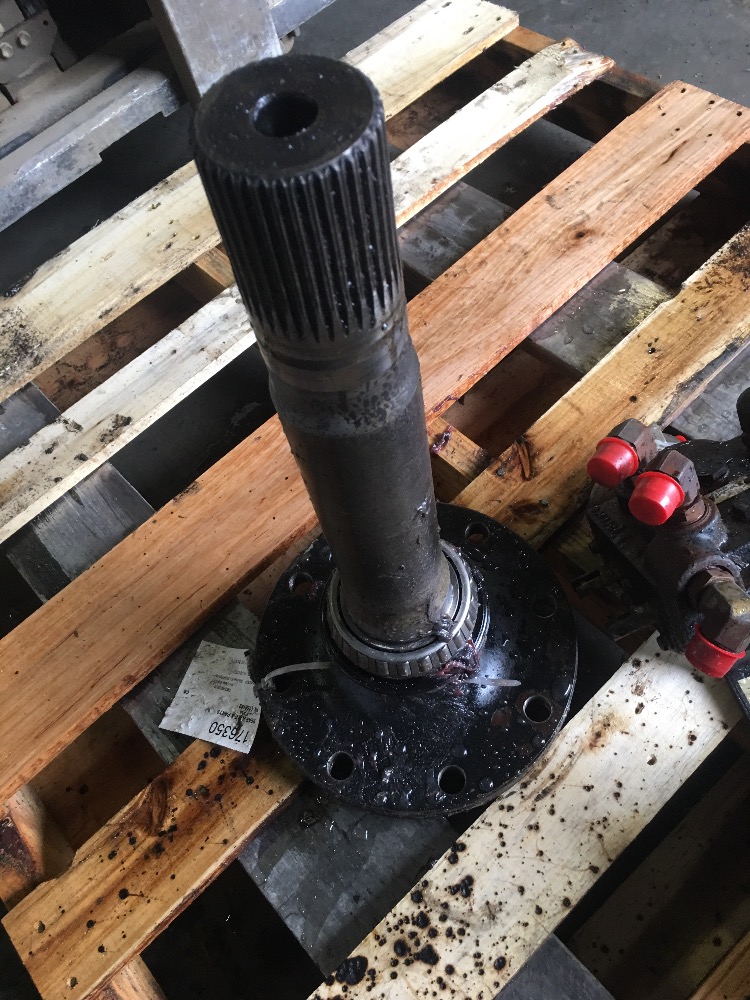

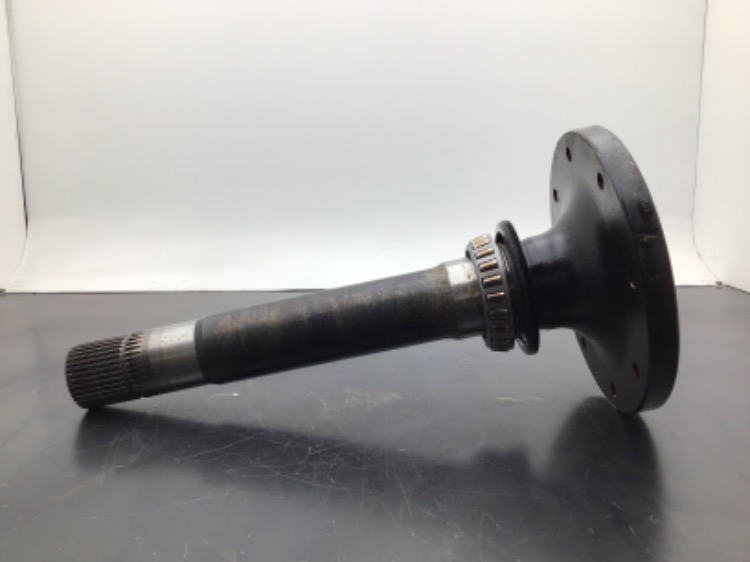

• L153830 - Axle Shaft

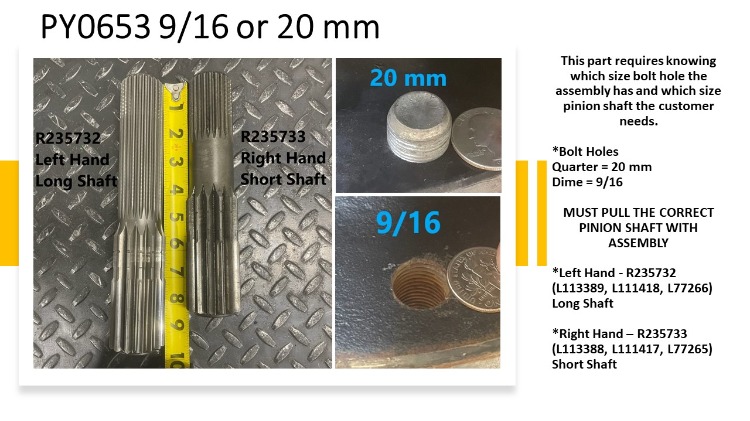

• LH & RH pinion shafts are different
• RH  R235733
• LH  R235732

**Choose Black or Green Color

*We need to know if you have a 9/16 or 20mm Axle Housing and if you need a Left Hand or Right Hand Pinion Shaft.
