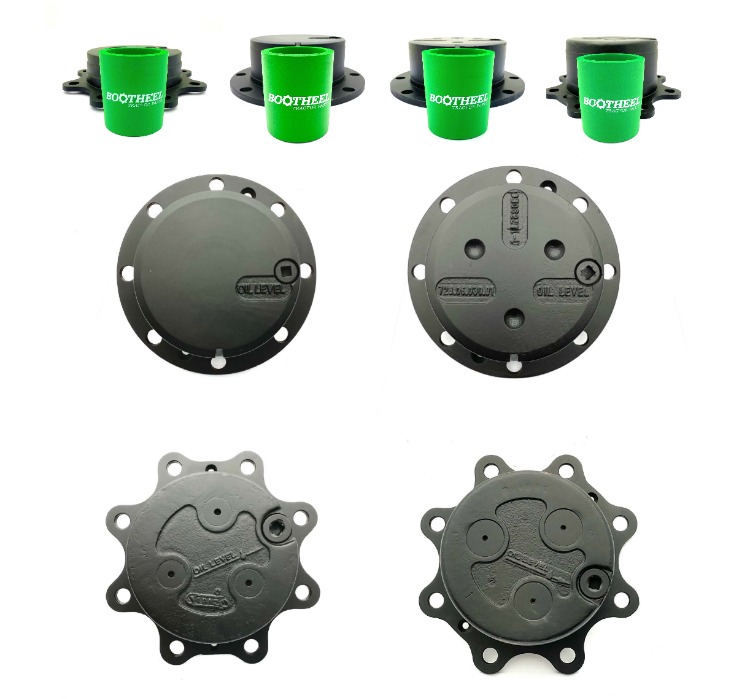

John Deere 5 Series MFWD Replacement and Upgrade Axles
SKU # FA725-V1
• Light Duty Carraro Axle
• 5200, 5300, 5400, 5500, 5210, 5310, 5410, 5510, 5220, 5320, 5420, 5520
SKU # FA725-V2
• Standard Duty Dana Axle
• 5065M, 5075M, 5085M, 5095M, 5105M, 5100M, 5115M
SKU # FA725-V3
• Heavy Duty Carraro Axle (Counter Clockwise Rotation)
• 5075M, 5085M, 5095M, 5105M, 5100M, 5115M
SKU # FA725-V4
• Extra Heavy Duty Carraro Axle
• 5103, 5203, 5403, 5603, 5105, 5205, 5082E, 5090E, 5090EH,
• 5220, 5320, 5420, 5520, 5325, 5425, 5525, 5625, 5725
MFWD Front Axle, Carraro
RE187969 Axle Housing sub R113781, R121595
OEM List $4,280
Good Used $2,565
Pivot Set
R113788 Rear Pivot Support
R113787 or R197978 Front Support
OEM List $2,075
Good Used $1,250
MFWD Differential Assembly
RE45902 Differential Housing, External
RE46009 Differential Housing, Internal
RE195924 Gear Set
RE45931 Ring and Pinion
OEM List $7,495 plus Labor to Assemble
Reman $5,625
Good Used $4,500
Additional Core $1,500
MFWD Hub with Drive Shaft (LH or RH)
OEM List $9,015 plus Labor to Assemble
Reman $6,750
New Bearings, Seals and U-Joints
Good Used $5,450

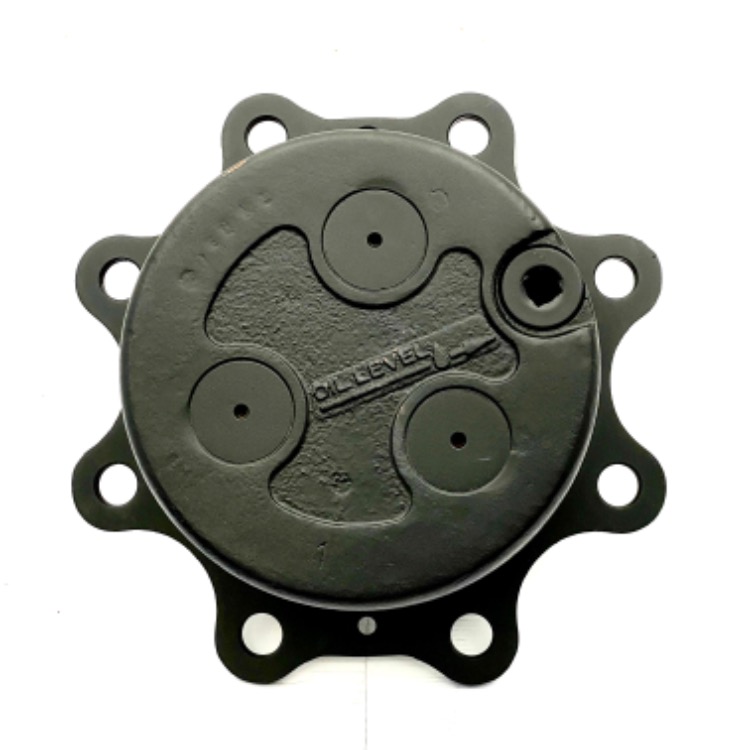

MFWD Hub without Drive Shaft or Steering Knuckle
RE45942 Carrier
R113991 Ring Gear
R119586 Drive Hub
R113990 Planetary Gears
RE195927 Wheel sub SJ39442, RE45945
OEM List $4,650
Reman $3,500
Good Used $2,800
RE45941 Drive Shaft sub for RE188421
(R113976, R113977, R113978 sub for R187982)
RE45940 U-Joints
OEM List $1,868.64
Good Used $1,000
RE57471 King Pins
OEM List $450
Good used $250 without bearings
RE54735 LH Steering Knuckle sub to SJ19585
RE54736 RH Steering Knuckle sub to SJ19586
OEM List $2,050
Good Used $1,250
RE45916 Steering Cylinder
OEM List $2,217.32
Resealed $1,665 plus a $450 core
Good Used $1,250 plus a $450 core
RE55066 Tie Rod, LH and RH N/A
Two-Piece MFWD Wheels
OEM List $2,000 set
Good Used $1,200 set
RE45773 (11.2-24 AND 12.4-24 Tire)
RE45768 (13.6-24 Tire)
RE45772 (8.3-24 AND 9.5-24 Tire)
R109280 Center Wheel
(8.3-24, 9.5-24, 11.2-24, 12.4-24 AND 13.6-24 Tire)
