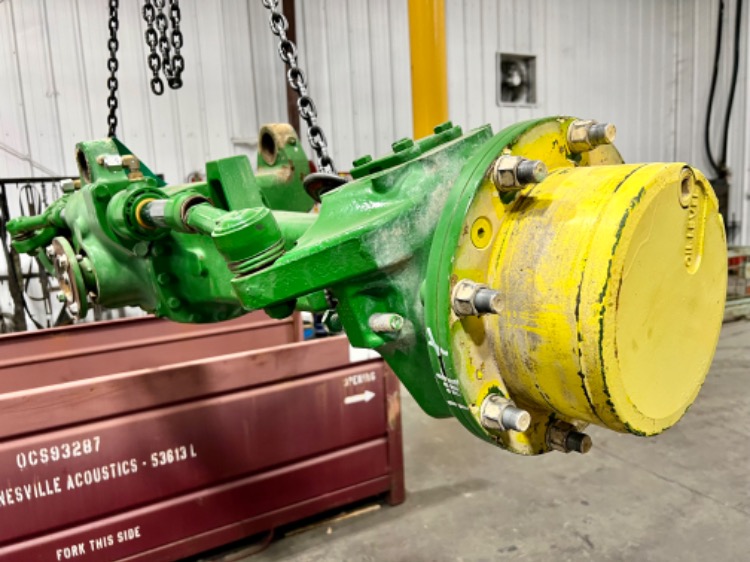

DANA 733 with 19.09 Ratio

Reverse Rotation

SKU RE270055   Stock # 398755

Purchase Options
Good Used $10,000 + $2,500 Core
Reman $12,500 + $2,500 Core
Used Final Drive $5,000 + $2,500 Core

DANA 733/144, 19.090 Ratio

Ring & Pinion RE282665
Differential AL161278 with AL174044
Axle Housing R282669
Axle Housing R282667

Drive Shaft AL161317
Outer L174439
H Yoke AL161459
Inner AL161322
U-Joints AL161324

Steering Knuckle, RH L157637, L157368
Steering Knuckle, LH L157636, L157614
King Pins AL172487 sub to AL222147


Carrier L166299 4 Pin
Planetary Gears AL230239 sub L157616, AL163468, AL209977
Ring Gear L157619, L174120, L204840
Drive Hub L174121, L157618, L157638, R271414
Wheel Hub L226346, AL161288, L157622

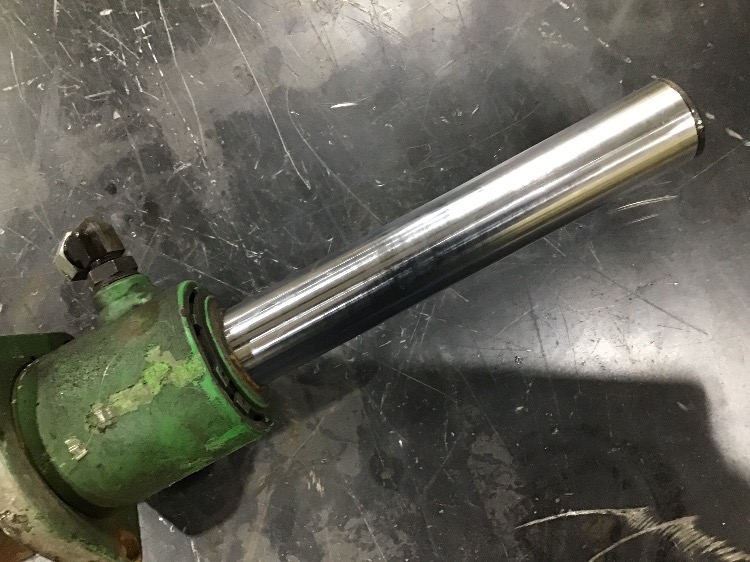

Steering Cylinder RE282742
Tire Rods AL166369, AL204774, AL161338, AL161338


Dana Two Piece MFWD Axle, 733/144
AL232264, RE270055

Can be used as an Upgrade for:
AL208660, AL232263, AL221102
730/151, 730/144

Axle Housings
R282667 use with AL221102 - LH
AL233173 us with AL232263 - LH
R282669 use with AL221102 - RH
AL233174 use with AL232263 - RH
730/144 19.09 Axle AL208660, AL221102, AL232263
733/144 19.09 Axle RE270055, AL232264
RE72947 (ZF AS2035) R&P RE185035
Carrier L100242
Ring Gear L79729
Planetary L100241
Pinion L110240
Wheel L100238
RH Knuckle R185037, L114786
LH Knuckle R185038, L114787


RE216203 (ZF APL350) R&P RE218238 10/32T
R215852 RH
R215853 LH
Carrier L41121, L206212,
Pinion CQ27302
Ring Gear CQ27301
Planetary CQ29408
RH Knuckle R218254
LH Knuckle R218255
Wheel L41928
CV Joint AL226098, DQ31200

RE270005, AL232264 19.09 (733/144)
AL208660, AL232263 19.09 (730/144) sub AL221102
AL221102, AL232263 19.09 (730/151)


Replaces 730 AL208660, AL221102, AL232263

AL232263,
Axle Housing, RH AL233174
Axle Housing, LH AL233173
Differential AL161278 with AL174044
Ring & Pinion AL233162 with Bearings AL161275


Steering Knuckle, RH L225847
Steering Knuckle, LH L225848
King Pins AL222147, AL209993
Steering Cylinder AL233198

Drive Shaft AL233196
Inner L225868
H Yoke AL225759
Outer AL233195
U-Joints AL226566 sub for AL211691

Carrier SJ31404
Planetary Gears (3) AL227338
Ring Gear L225866
Drive Hub L174121 L157618, L157638, R271414
Wheel Hub L225849

AL221102
Axle Housing, RH R282669 (Short Side)
Axle Housing, LH R282667
Differential AL161278 with AL174044
Ring & Pinion RE282665

Steering Knuckle, RH L157637
Steering Knuckle, LH L157636
King Pins AL222147, AL209993
Steering Cylinder RE282742


Drive Shaft AL233196 sub for AL221103
Outer L217935
H Yoke AL211692
Outer AL221104
U-Joints AL226566


Carrier L171156
Planetary Gears (3) AL230329, AL163468, AL209977
Ring Gear L204840, L174120, L157619
Drive Hub L174121, L157618, L157638, R271414
Wheel Hub L157622, L226346, AL161288


S/N: 1P06130DVE0060085
Transmission S/N: PXTRMRT041062

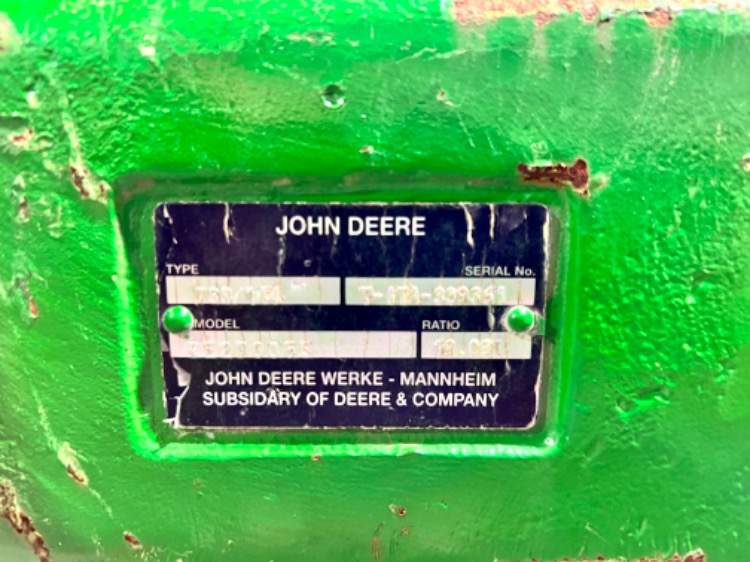

MFD S/N: T-ITA-339361


   Text Us! 573-242-5582





This DANA 733 with 19.09 Ratio will fit the following models...

John Deere
6105E, 6100D, 6105D, 6110D, 6110E, 6115D, 6120E, 6125D, 6125E, 6130D, 6135E, 6140D

Series
6105, 6115
Tags: DANA 733 Axle

This part replaces the following part numbers:
AL208660,AL221102,AL232264,AL232263,L157368

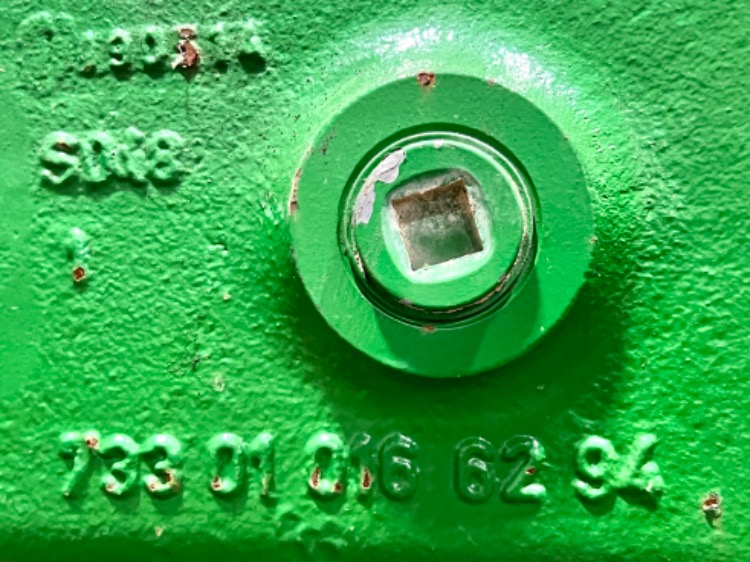

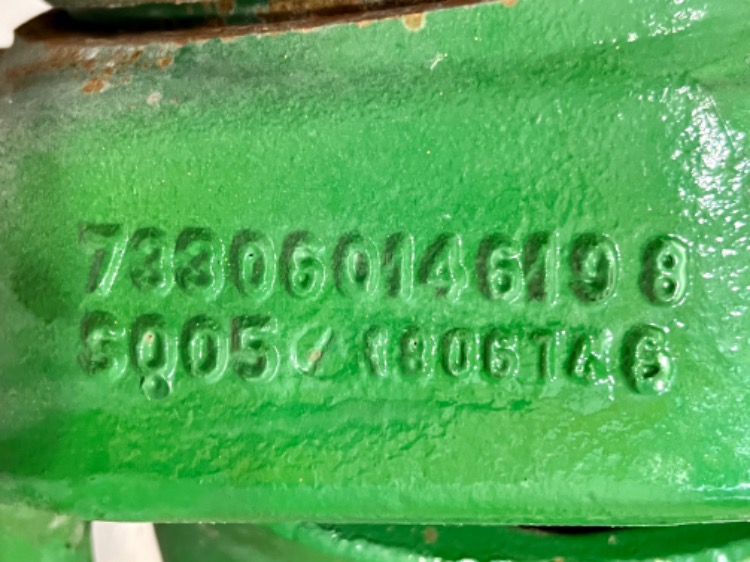

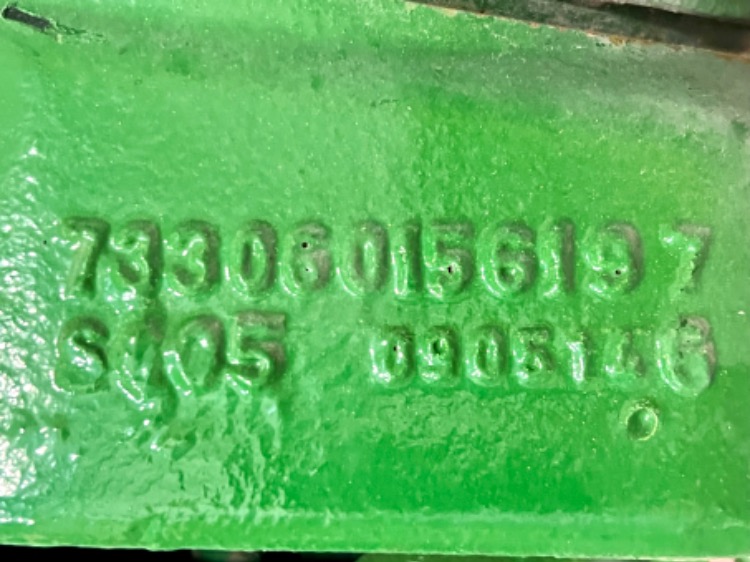

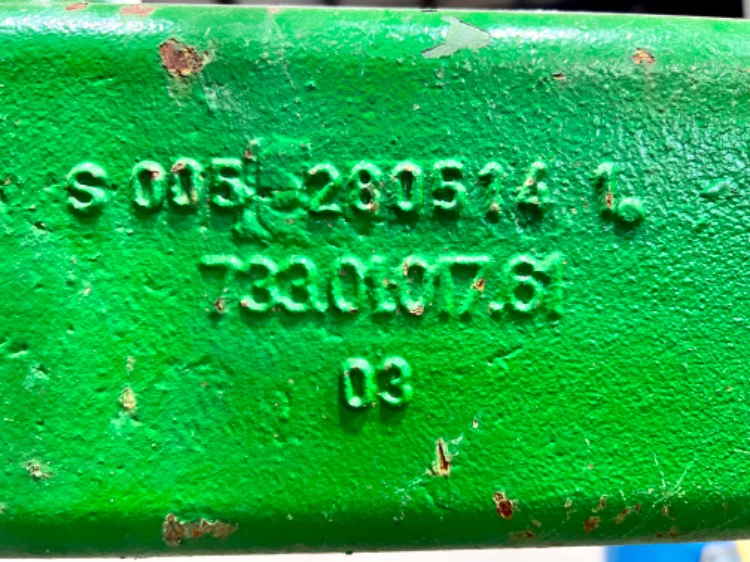

Marked Numbers
7330601461,733.06.014.61,7330601561,733.06.015.61,AL208660,AL221102,AL232264,733/144,733.01.016.62,733.01.017.61,RE282665,AL161278,AL161278.A,AL174044,R282669,R282667,AL161317,L174439,AL161459,AL161322,AL161324,L157637,L157636,L157614,AL172487,AL222147,L166299,L166299.A,AL230239,L157616,AL163468,AL209977,L157619,L174120,L204840,L174121,L157618,L157638,R271414,L226346,AL161288,L157622,RE282742,AL166369,AL204774,AL161338,
